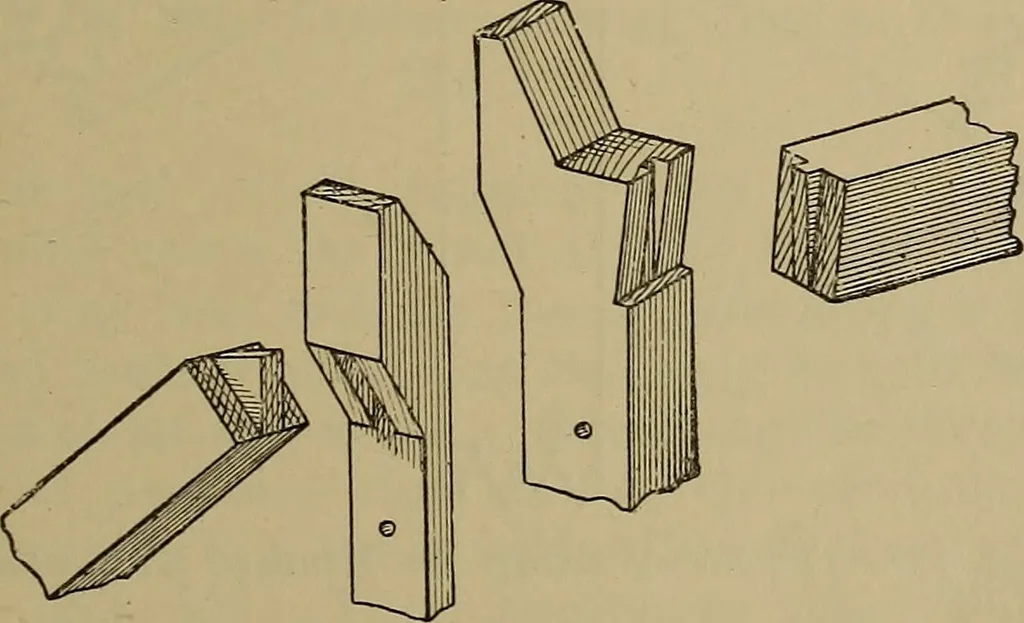

Fig. 490.—General View showing Constructionat Heads of Queen-posts. Fig. 491.—General View showing Construction at Feet of Queen-posts and Connection of Tie-beams. from Fig. 491, the tie-beam of the formerbeing connected to that of the latter by a … Fig. 494.—Forms of Joints at Head of Queen-posts. short stub-tenon, and both being furthersecured by iron straps and bolts. No doubtthis method is preferable to the old-fashioned one of connecting the tie-beams by tuskmortise and tenon joints, and tightening upwith keys. Other straps and connections
