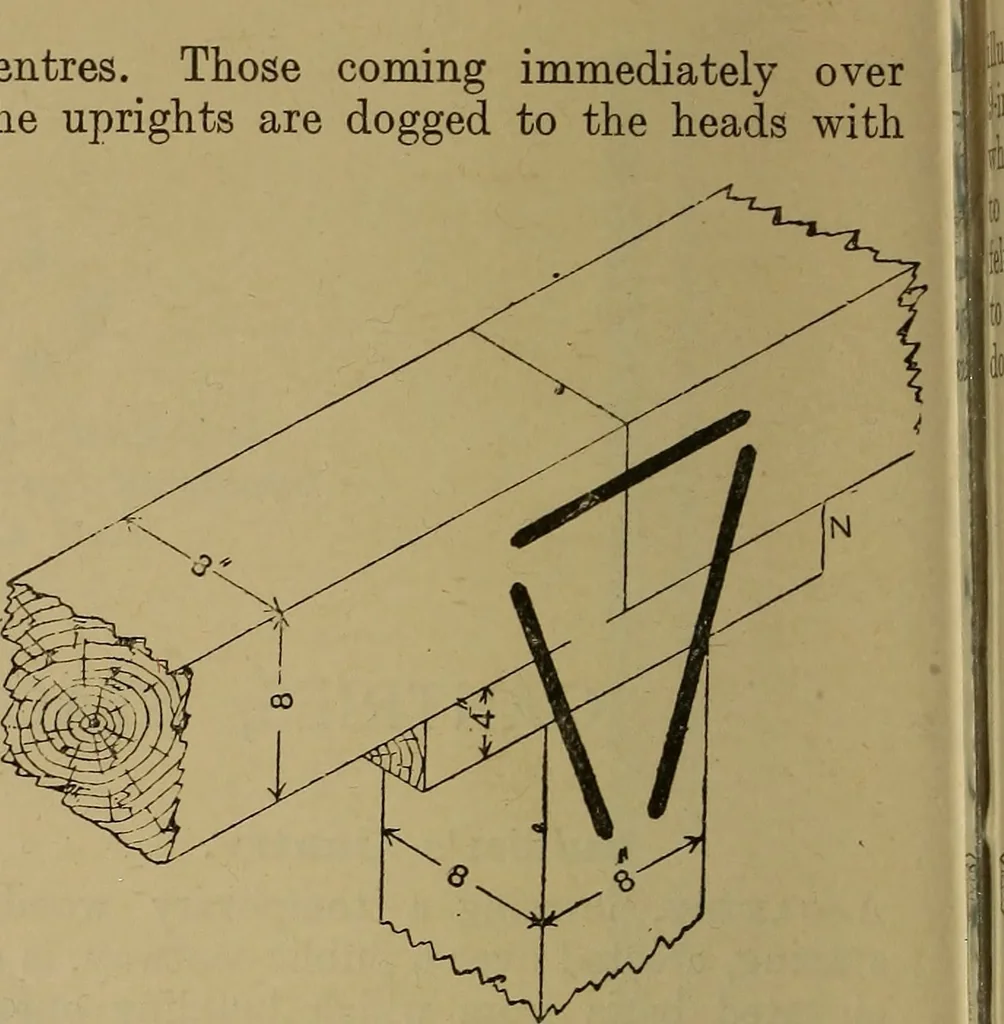

ofthe standards on them. These standardsare then cut off to the required length, allow-ing for the difference in level owing to thefall of the footway. The uprights are nowplaced in position, dogged to the sole pieces,and temporarily braced with scaffold boardsor any other handy material. The… … Fig. 759. •Enlarged View of Impost Piece ofBuilders Gantry. those shown at Fig. 761 (sometimes knownas bitches). The gantry may now bebraced as shown in Figs. 757 and 758, the
