Experiments on the rate of heat transfer from a hot gas to a cooler metallic surface (1916)
Babcock & Wilcox Company · New York, The Babcock & Wilcox co · leaf 44

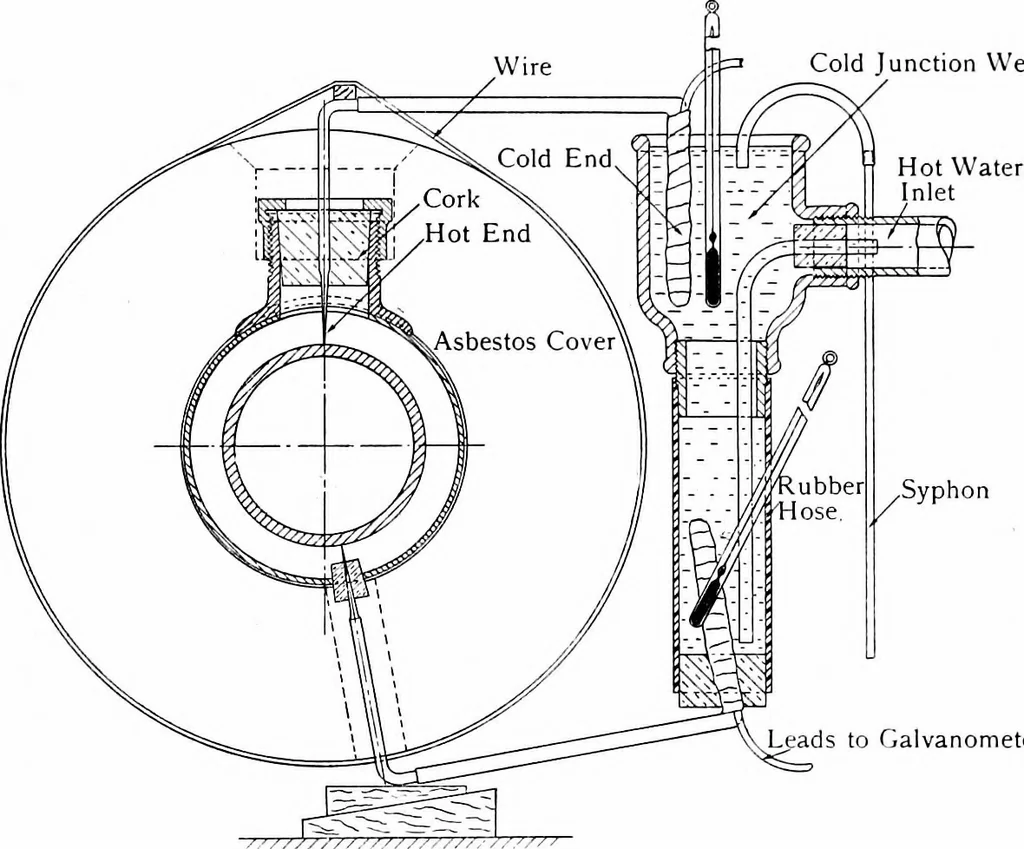

d the rates of water 32 flow through the jackets were varied from the minimum to themaximum, in this way covering all conditions of the tests.The thermo-electric couples were carefully calibrated :First, to verify the setting of the couples on the tubes, thatis, to assure a positive electric… … Syphon Leads to Galvanometer FIG. 8. THERMO-COUPLES IN POSITION AND ARRANGEMENTOF COLD WELL Second, a calibration covering the range of tube temperaturesin the transfer rate tests for the hot end, namely, from 140 to 212degrees Fahrenheit, and with the cold end range from 130 to150 degrees…
Heat
