A practical treatise on modern gas and oil engines (1902)
Grover, Frederick · Manchester, The Technical Publishing Co., Limited; [etc., etc.] · leaf 50

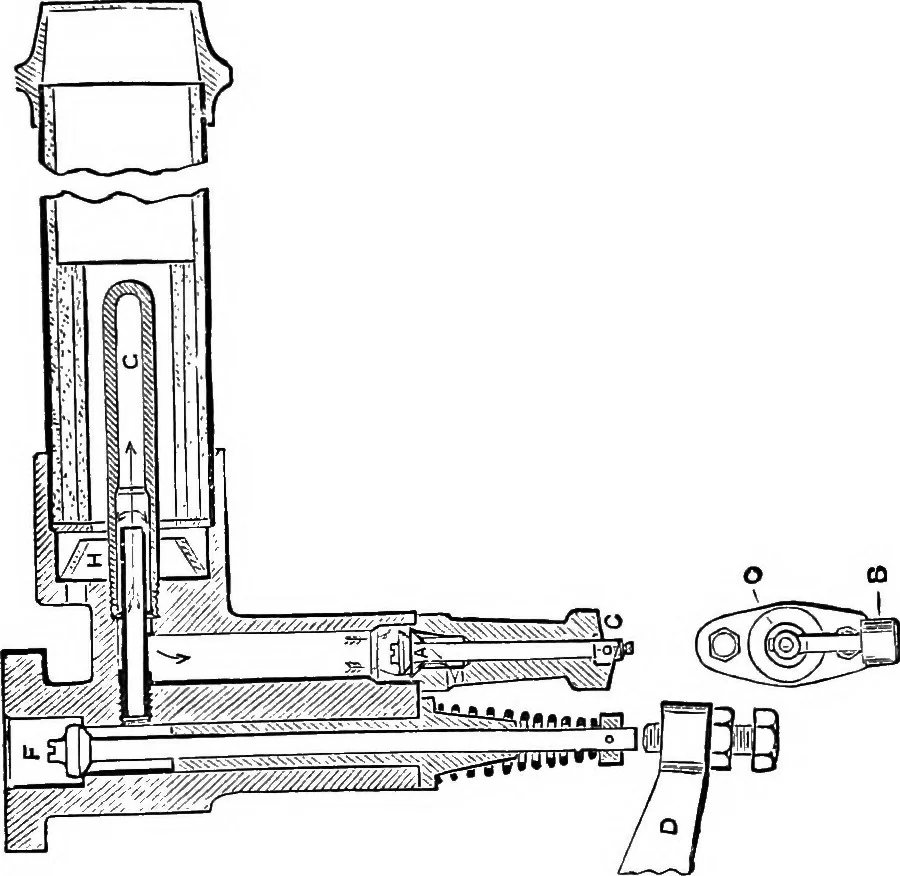

nal Elevation. drawings. Fig. 22 shows a section through the back of thecylinder, with the gas and air valves. It will be noticed TYPES OF GAS ENGINES. 39 that the back of the cylinder is cast separately from theremainder of the cylinder and engine framing ; and further(see fig. 25) that the metal… … Fio. 23.— Stockport Gas Engine—Section of Timing Valve Bracketand Seif-btarter combined. fracture due to the formation of ice will occur only at thethin wall of the jacket. This is easily and cheaply replaced,whereas if fracture occurred in the forward end of thecylinder, a large and expensive…
Internal combustion engines
