Classroom lecture notes, automotive starting, lighting and ignition, with diagrams (1918)

Fryer, Roy Charles, 1888- · New York, J. Wiley & Sons, Inc.; [etc., etc.] · leaf 141

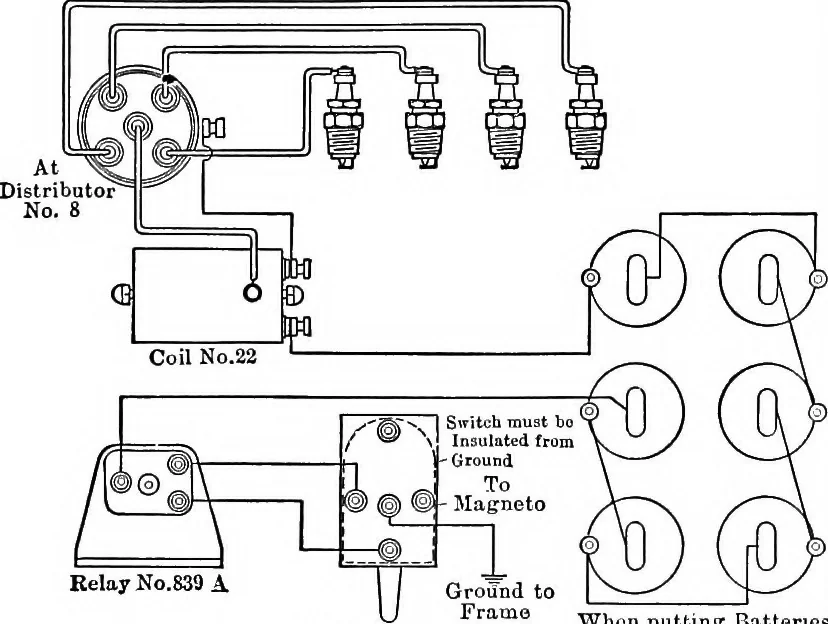

An illustration from Classroom lecture notes, automotive starting, lighting and ignition, with diagrams, 1918, leaf 141 — Ignition Coil No. 2022.Ignition Switch No. 1001. Distributor No. 5001.Ignition Relay No. 5661. … KelayNo.S39 A Ground toFrameTerminal Sideof Swit<;li No .8 Wlion putting i5atteriesin Box, Set Terminals Zto tbc outside of tbe Bo:i
