Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 329

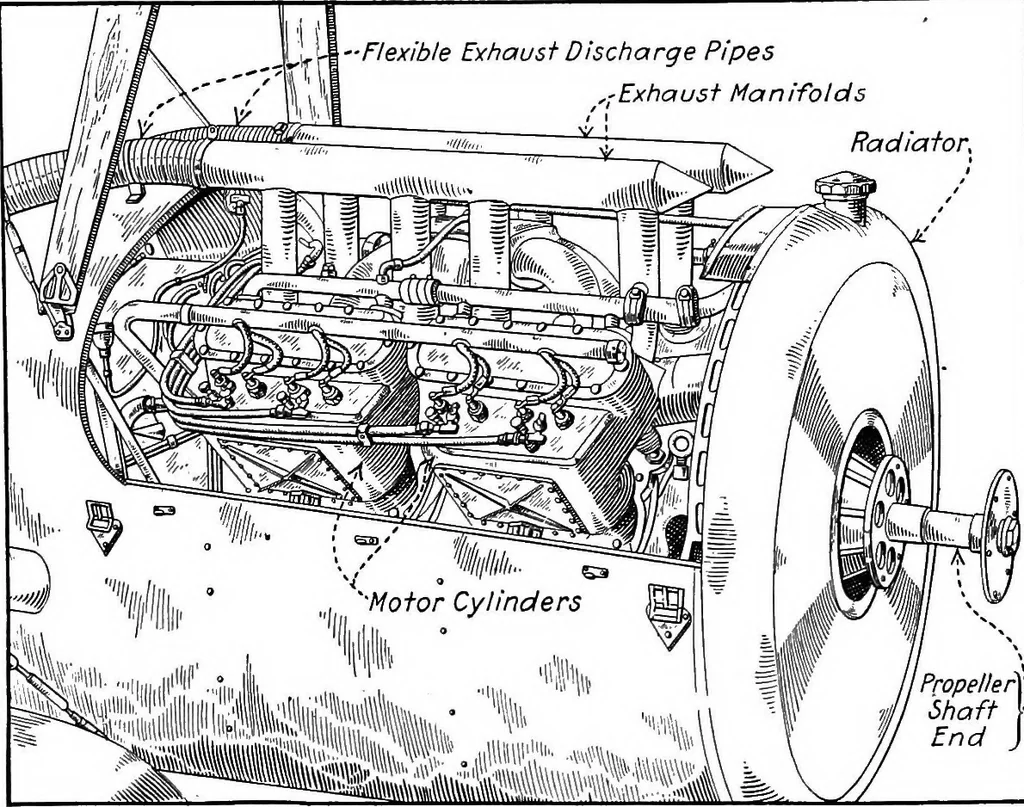

327 328 Aviation Engines radiator just back of the tractor screw insures that ade-quate cooling will be obtained because of the rapid airflow due to the propeller slip stream. INSTALLATION OF CTJETISS 0X2 ENGINE The following instructions are given in the CurtissInstruction Book for installing the… … Fig. 147.—Front View of L. W. F. Tractor Biplane Fuselage, ShowingMethod of Installing Thomas Aeromotor and Method of Disposing ofExhaust Gases. clear illustration presented no difficulty should be experi-enced in understanding the proper installation, and mount-ing of this power plant. The bearers…
Airplanes
