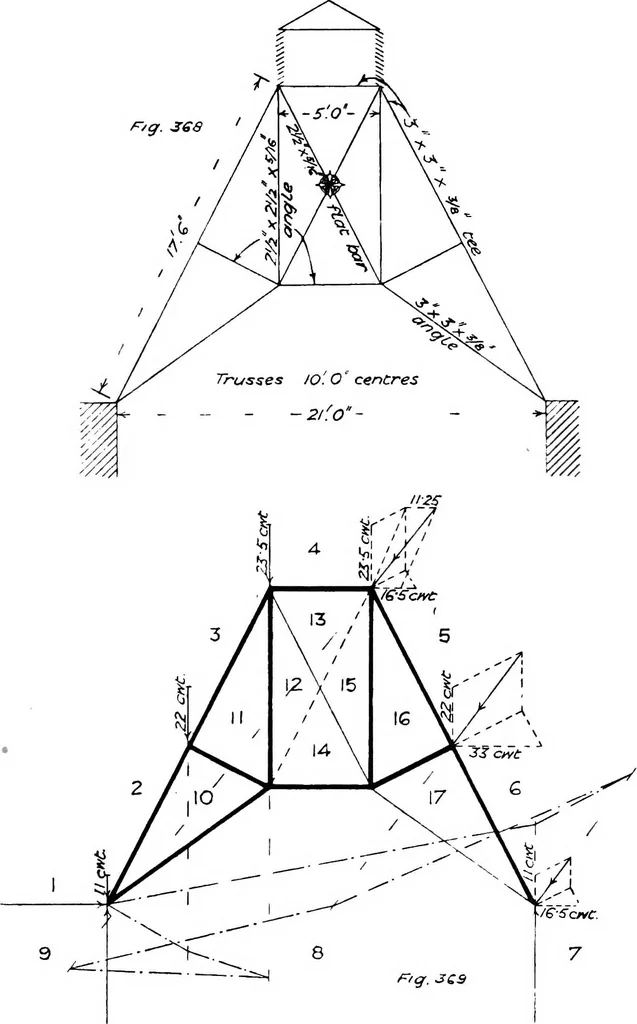

112 THE MECHANICS OF BUILDING CONSTEUCTION the rafters. In order to find the value of these virtual forces takemoments about the junction of the tie with the rafter, then virtual £ , J _ (11Z> — 1 X its leverage) — (la — 2 X its leverage). ~ leverage of 1—la … EXAMPLES FOR PRACTICE 113 Having obtained this force, 3—Sa and 11—11& may be readily found,and the operations may be repeated for the other side ; in this case asthe loading is symmetrical the virtual forces will also be symmetrical.The frame diagram, Fig. 367, may now be drawn out, and it will…
