Lake ship yard methods of steel ship construction (1907)
Curr, Robert · Cleveland : The Marine review · leaf 95

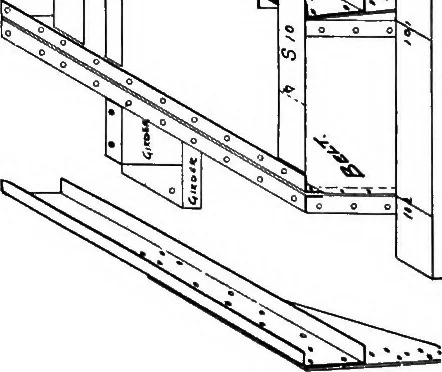

m g STEEL SHIP CONSTRUCTION 85 The part marked side is the rivet connection to the inner stringerplate. The intercostal part of the girder, Fig. 92, deck plate andstringer are all riveted together as seen by Fig. 87. The beam framing of this vessel is composed of beam channel,beam bracket,…
Naval architecture · Ships, Iron and steel
