Mechanical and marine engineering science ... Specially written as a handbook to the Board of Trade examinations for extra-first-class engineers (1909)
Somerscales, A. N · Glasgow : J. Munro; London, Simpkin, Marshall, Hamilton, Kent · leaf 115

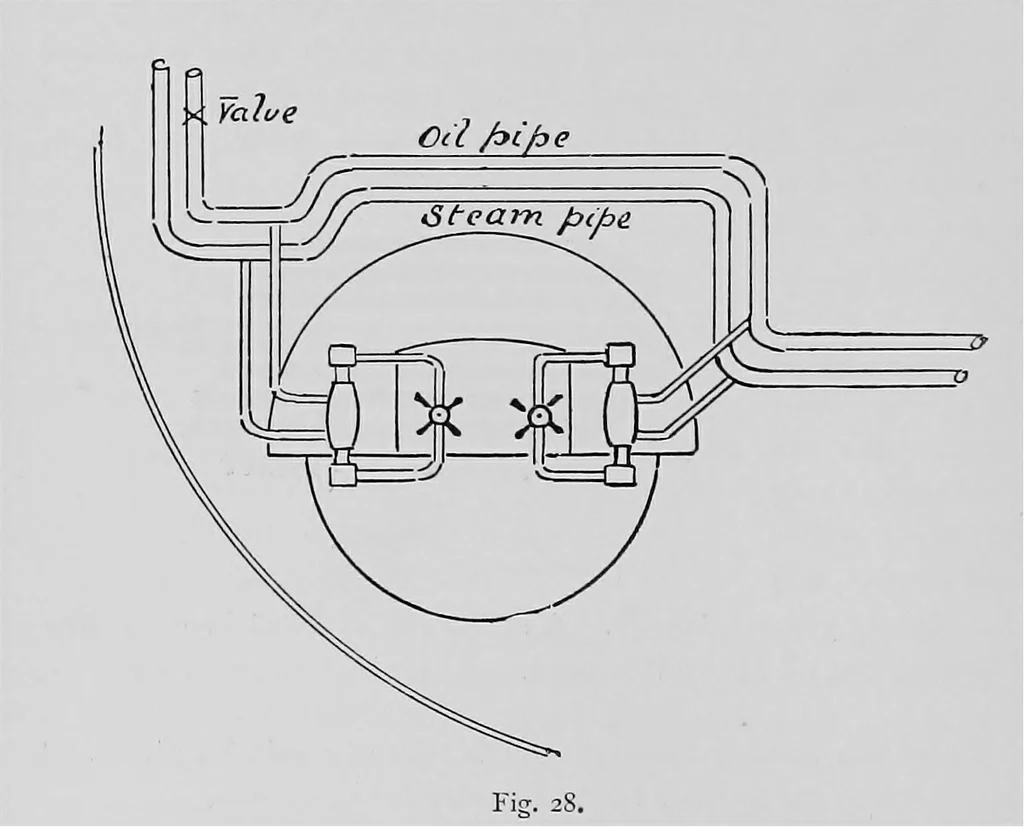

djustable endwise, so as to regulate the amount of steam andoil at the nozzle. The function of the steam jet is to pulverise theoil as it issues from the outer annular orifice and to project it in apowerful jet inside the furnace. The arrangement of the pipeconnections is shown, in figure 28, for… … As regards the interior of the furnaces different plans areadopted, partly to suit different burners and partly as alternativeplans. The simplest arrangement, and one that enables a returnto coal burning to be made most readily at any time, is to keep thefire-bars in the furnaces, but to cover them…
Naval architecture
