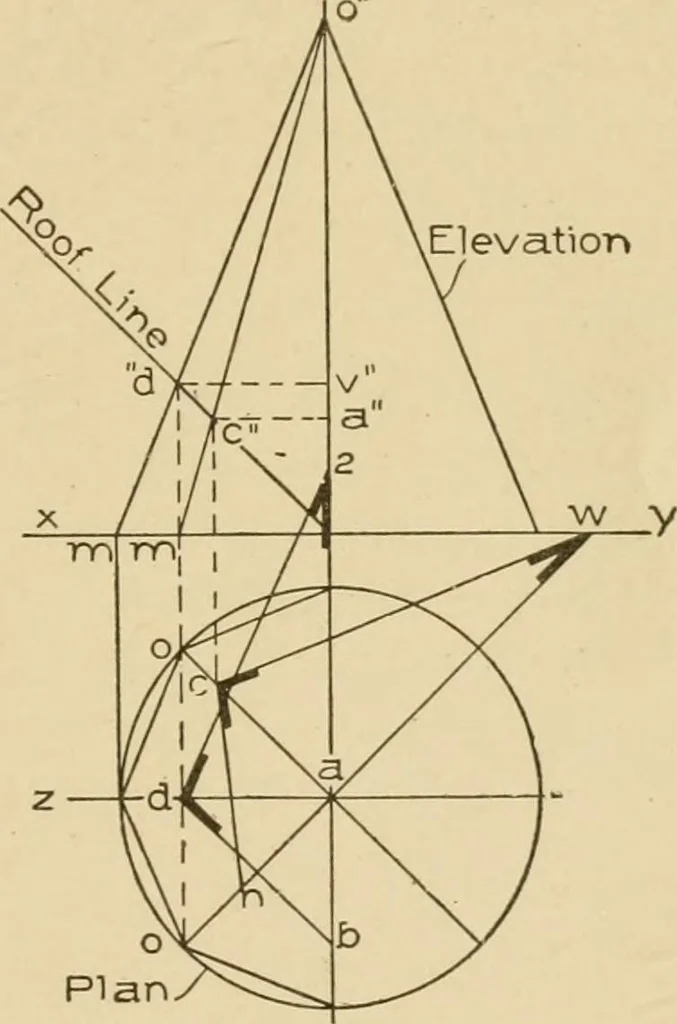

al 132 will indi-cate the length of the seat of the valley for 12 feet of run, and there-fore for one foot it will be 13 \ inches. Now, by taking 13^ on theblade for rim, and 12 inches on the tongue for rise, and steppingalong the valley rafter timber 12 times, the length of the valleywill be… … Plan Fig. 9. Method of Pindin^-Length and Cuts of Octagon Hips luiersei-t- iiig a Roof. S6B 26 THE STEEL SQUARE foot, all the timbers on the slope of the roof can be measured. Bevel2, shown in this figure, is to fit the valleys against the ridge. Bydrawing a line from w scjnare to the seat of the…
