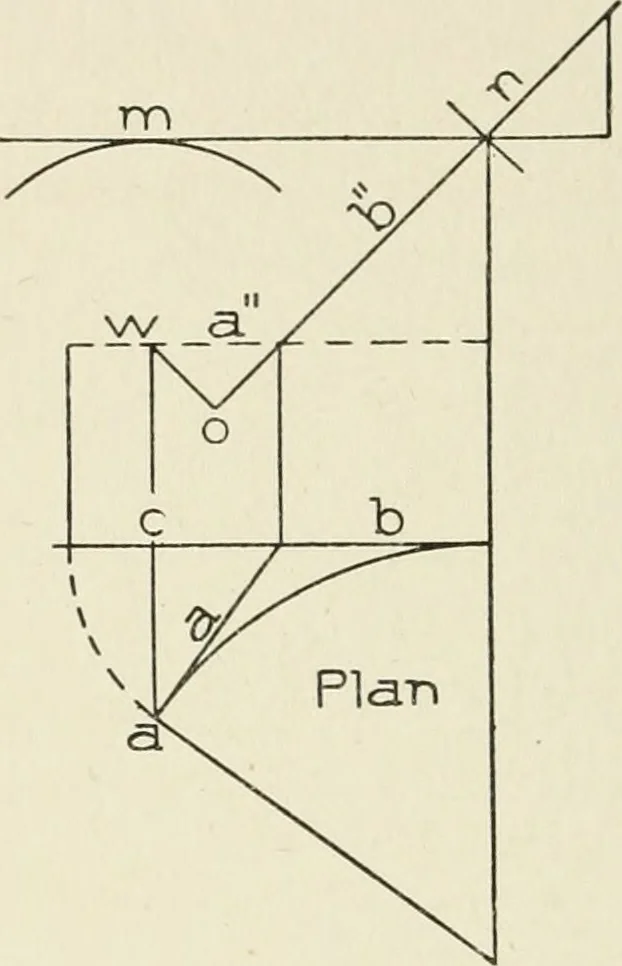

a face-mould andbevel for a wreath with the bottom tangent level and the top tangentinclining, such as the piece at the bottom connecting with the landingrail in Fig. 94. 325 62 STAIR-BUILDING Second Case. It may be required to find the bevels for a wreathhaving two equally inclined tangents. An… … Fig. 115. Ranie Plan as in Fig. 114, but with Bottom Tangent Level. wreath incline equally. Two bevels are required in this case, becausethe plane of the section is inclined in two directions; but, owing to theinclinations being alike, it follows that the two will be the same.They are to be applied…
