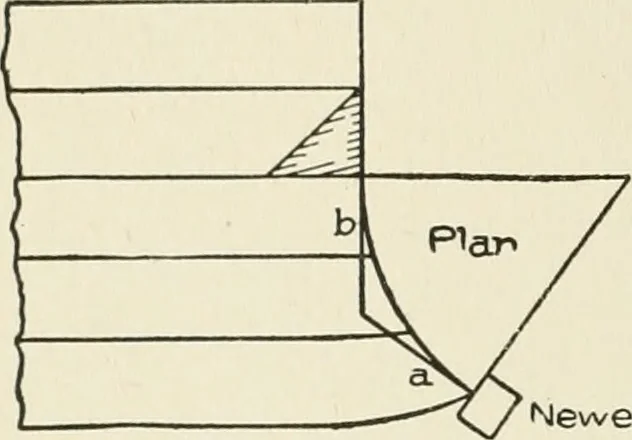

Fig. 101. Newel Finding Angle between Tangents for SquaringJoints of Ramped Wreath. 319 56 STAIR-BUILDING … Newel Fig. 102. Bottom Steps with ObtuseAngle Plan. previously drawn from w square to the tangent b extended. Then,by connecting m to b, the bottom tangent is placed in position on theface-mould. The joint at m is to be made square to it; and the jointat c, the other end of the mould, is to be made…
