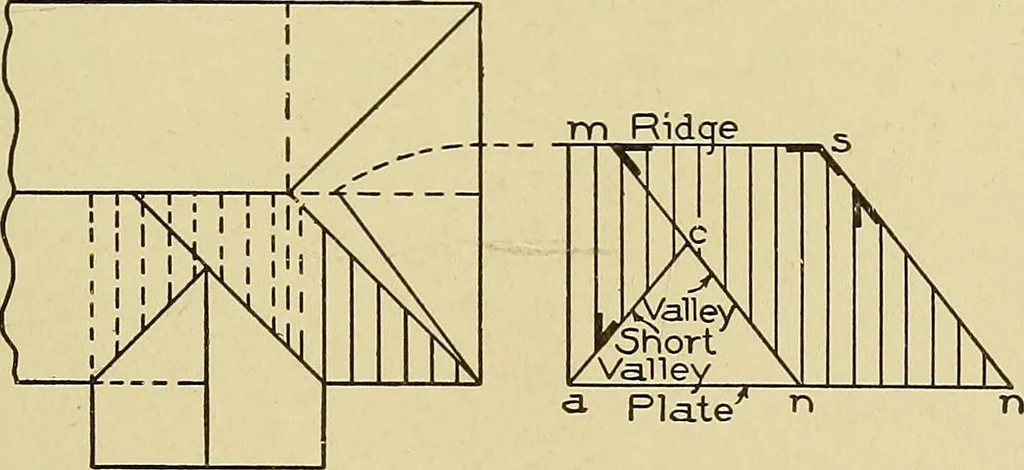

Fig. 28. Finding Length of JackRafter in %-Pitcli Roof. … Fig. 39, Method of Determining Length of Jacks Between Hips and Valleys;also Bevels for Jacks, Hips, and Valleys. 18 inches it will become necessary to use two squares; otherwise thetongue as shown at m would not reach the edge of the timber. In Fig. 28 the same method is shown for finding the…
