Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 660

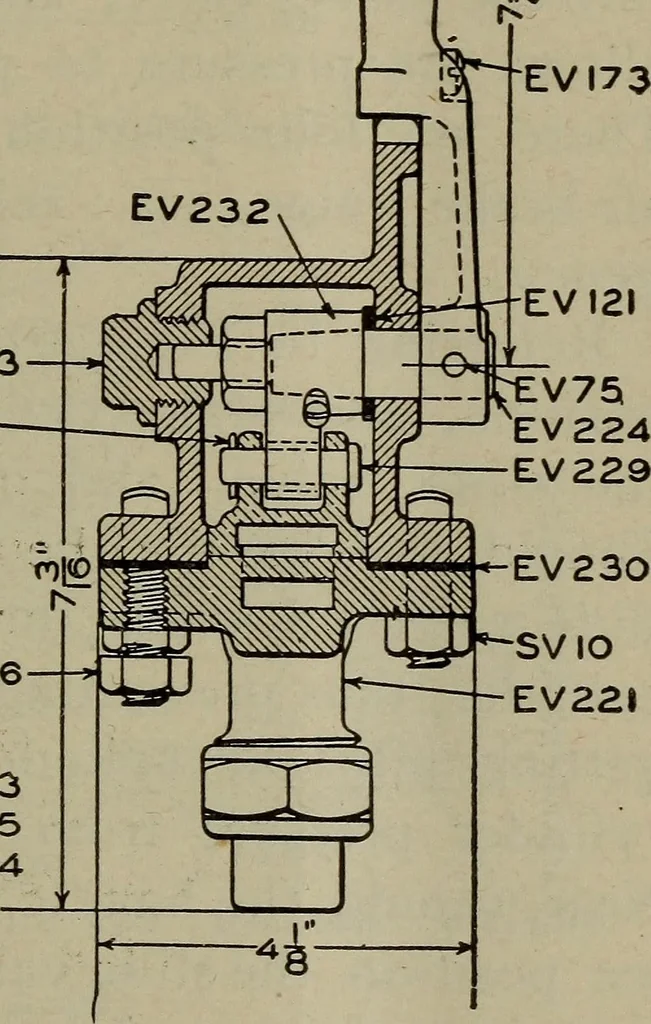

EV222EV69EV 172 ^K\J EV96EV223 EV74 EVI73. EV256 EV226 EV253EV255EV254 To Brake Cylinder% Pipe. Tc^Main Reservoir% Pipe. … Figure 263New York Straight Air Engineers Brake Valve tender brakes independent of the triple valve whenthe triple is in release position. The New York straight air equipment consists of astraight air brake valve, a reducing valve, a doublecheck valve, a brake cylinder guauge, and a safetyvalve on…
Locomotives
