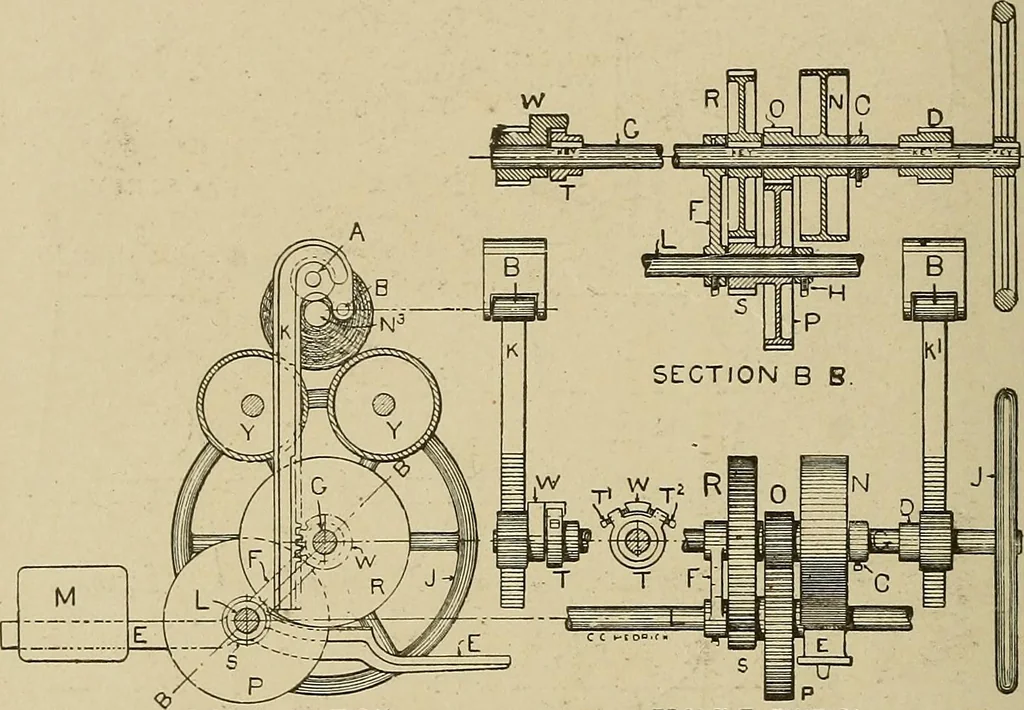

e ijinion, D; both pinions are secured to the rackshaft, G. The gear, R, also on the rack shaft, is connected withthe pinion, O, which is on the hub of the break pulley, N, bjthe gears, S and P. These gears turn loose on the shaft, L, andare held in position by the collars, F and H. The break… … SIDC ELEVATIOIN! Fig. 43. Friction Let-off FRONT CLEVATION tact with it by the weight, M. The face of the break lever whichbears against the pulley is lined with leather. As the lap increases in diameter, it draws up on the rackswhich are kept from rising by the friction of the break lever…
