The design of marine engines and auxiliaries (1916)
Bragg, Edward Milton, b. 1874 · New York, D. Van Nostrand Co. · leaf 100

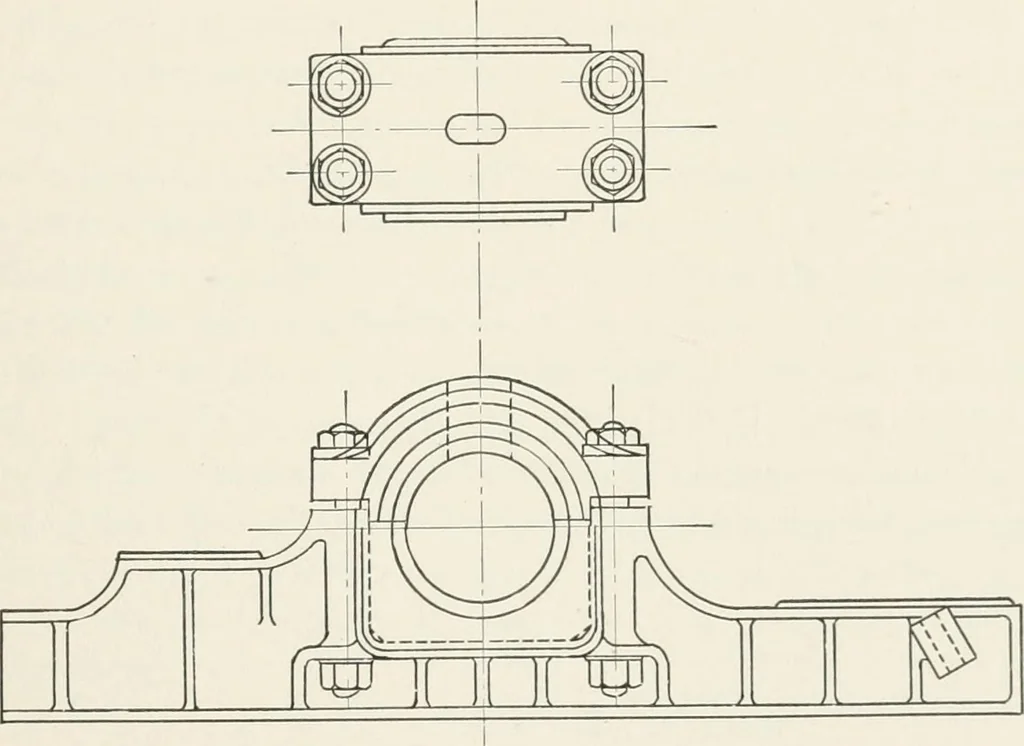

and there should be enough flange space for the boltsrequired. The bolts in the top flange are spaced about 3 diam-eters apart and the width of the joint is about 3 diameters. Thebottom flange of the cylinder supports carries about 50 per centmore bolts than the top flange and the spacing is about… … Fig. 43. under each main bearing. The shape of the girder depends uponthe material used; if made of cast iron they are of the hollow boxform shown in Plates 1,2, and 3; if made of cast steel the openI-section is used, see Fig. 43. The bed is usually carried downso that the bottom of the…
Marine engines
