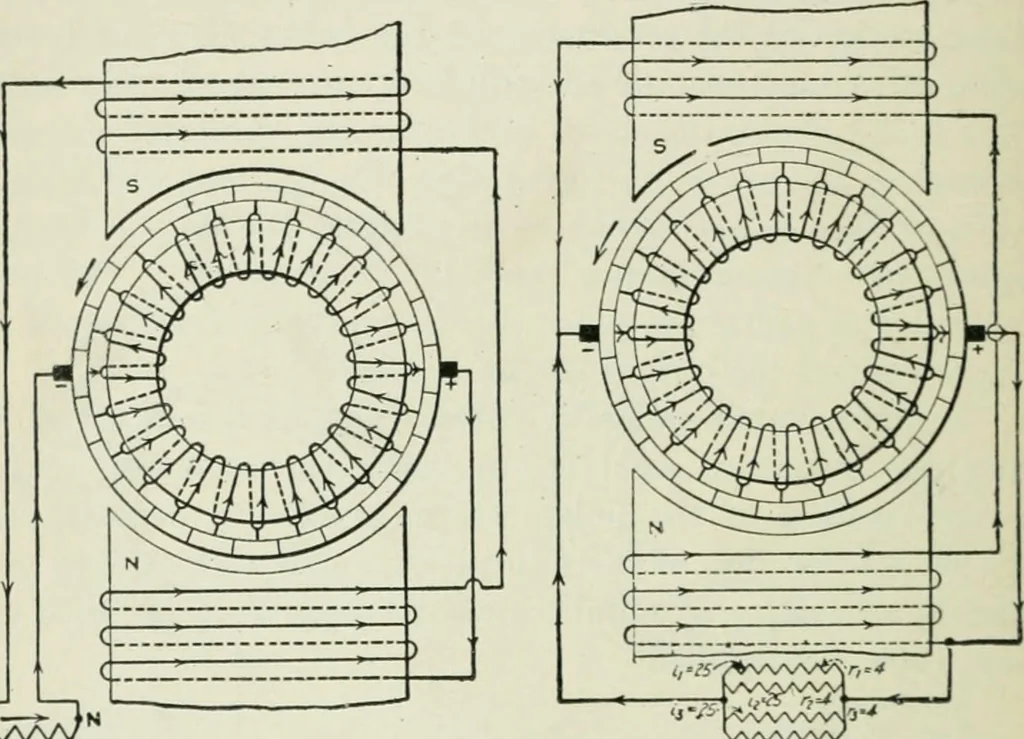

esistance of the field cofls andload can only be volts-^ amperes, or in this case, 110-H100 = 1.1 ohms. 192 ELECTRICAL MACHINERY Now if we are to keep the amount of power expended in the field coils on the scries machine down to approximately that of the shunt machine or 3 per cent, then the… … ^^CvW Fig. 205 Fig. 206 Fig. 205.—.Scries gonrrator connected to a load.Fig. 206.—(Shunt generator connected to a load. The foregoiiif^ shows the most prominent structural differ-ence between the sliuiit and series type of machines. The fieldcoils on llie shunt machine are wound with a large number…
