International Library of Technology · Scranton, International Textbook Co. · leaf 470

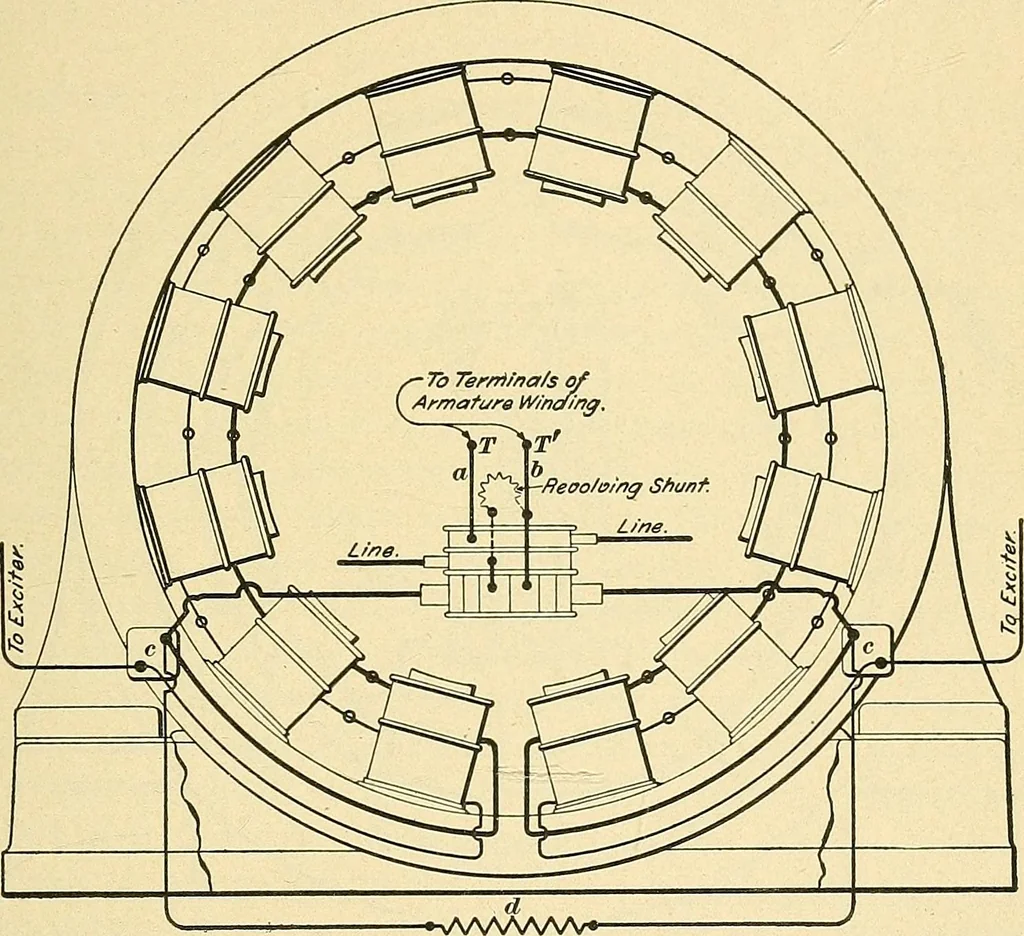

ing-Current Apparatus; it is now necessary to see how these are carried out on the CURRENT APPARATUS. 2835 machine. We will first consider the connections suitablefor a single-phase compound-wound machine of the typedesigned. Fig. 1656 represents the connections of such amachine. 7 and T are the… … Stationaiy Shunt.Fig. 1656. the rectifier being connected to the remaining collectorring. If a revolving shunt is used across the rectifier, it isnecessary to have another connection stud, shown by thedotted line. The revolving shunt is then connected betweenthis stud and b, thus placing the shunt…
Electrical engineering
