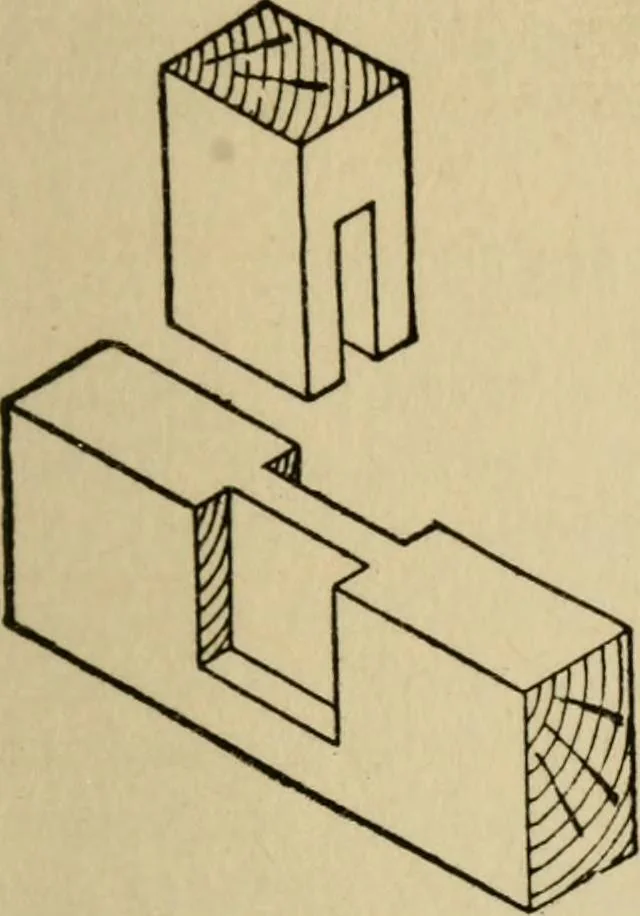

nt, used in manyinstances as a brace, or strut, to prevent framing from rack-^ing. (See also Fig. 32.) ^ Fig. 77 is a stopped bridle joint, used in positions wherethe top or bottom edge of the work meets the eye, and where,if the rail were allowed to run through, the end grainwould appear… … Fig. 77.—Stopped BridleJoint. M Fig. 7».—Bridle Joint.
