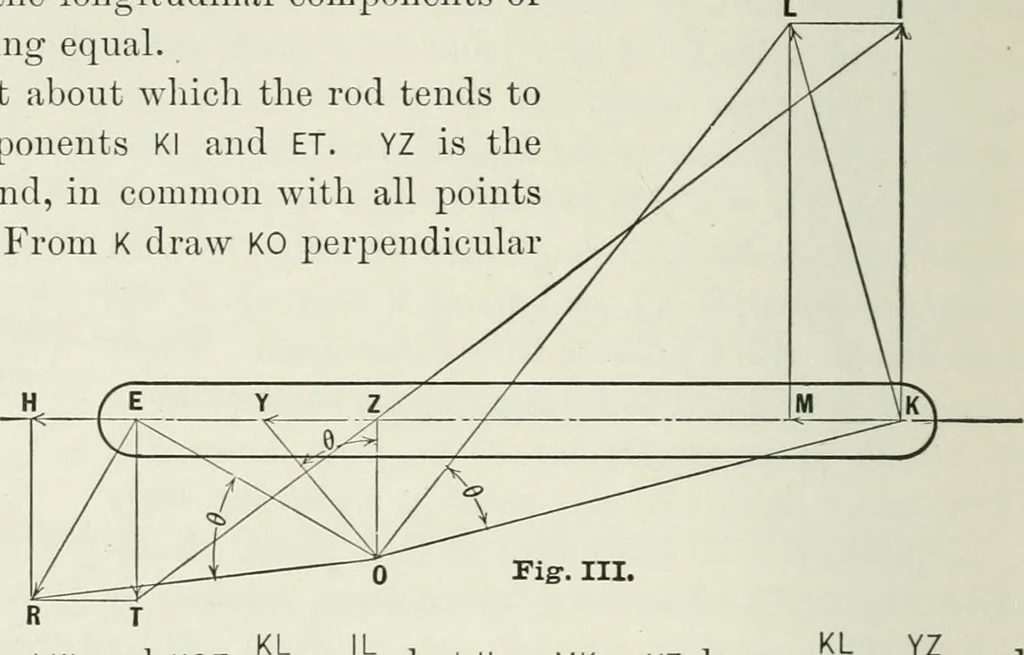

hich are EH and KM, being eqnal. Draw IT, and Z will be the point about wliich the rod tends torotate by reason of the side components Kl and ET. YZ is thehorizontal component of point Z and, in common Avith all pointsin the rod, is equal to EH and KM. Brom K draw KG perpendicularto KL, and from Z… … = —, and oz Proof. In the similar triangles LKl and KOZ, — = —, but IL = MK = YZ, hencetherefore angle LOK is equal to angle YOZ. q.e.d. Similarly angle ROE = angle YOZ = angle LOK, hence 0 must be the center about which allpoints in the rod EK revolve with equal angular velocity. VI. If a circle,…
