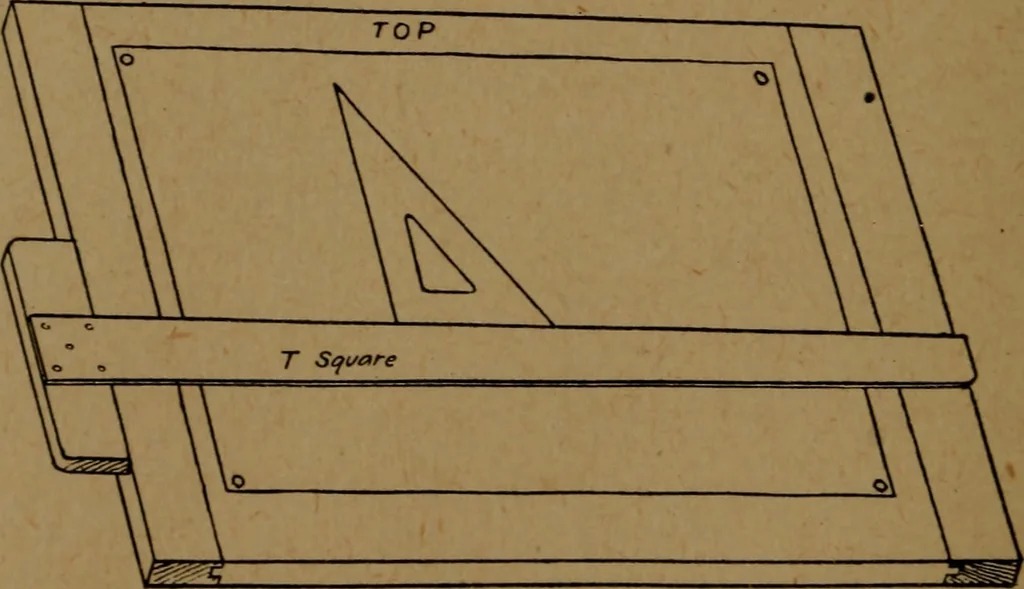

Toavoid confusion, it is highly desirable that the studentsshould put their initials on their equipment. The left edge of the drawing board must be true, forthe head of the T square slides against this edge. Drawingboards, when first purchased, generally need truing-upon the edge with a jointer… … Figure 24. lines with the pencil against the upper edge of the blade ofthe T square. Figure 24 shows the drawing board with Tsquare, 30^-60° triangle, and drawing paper, ready tobegin work. Steps in penciling and inking drawings. — i. Put draw-ing paper on center of board, fastening with four…
