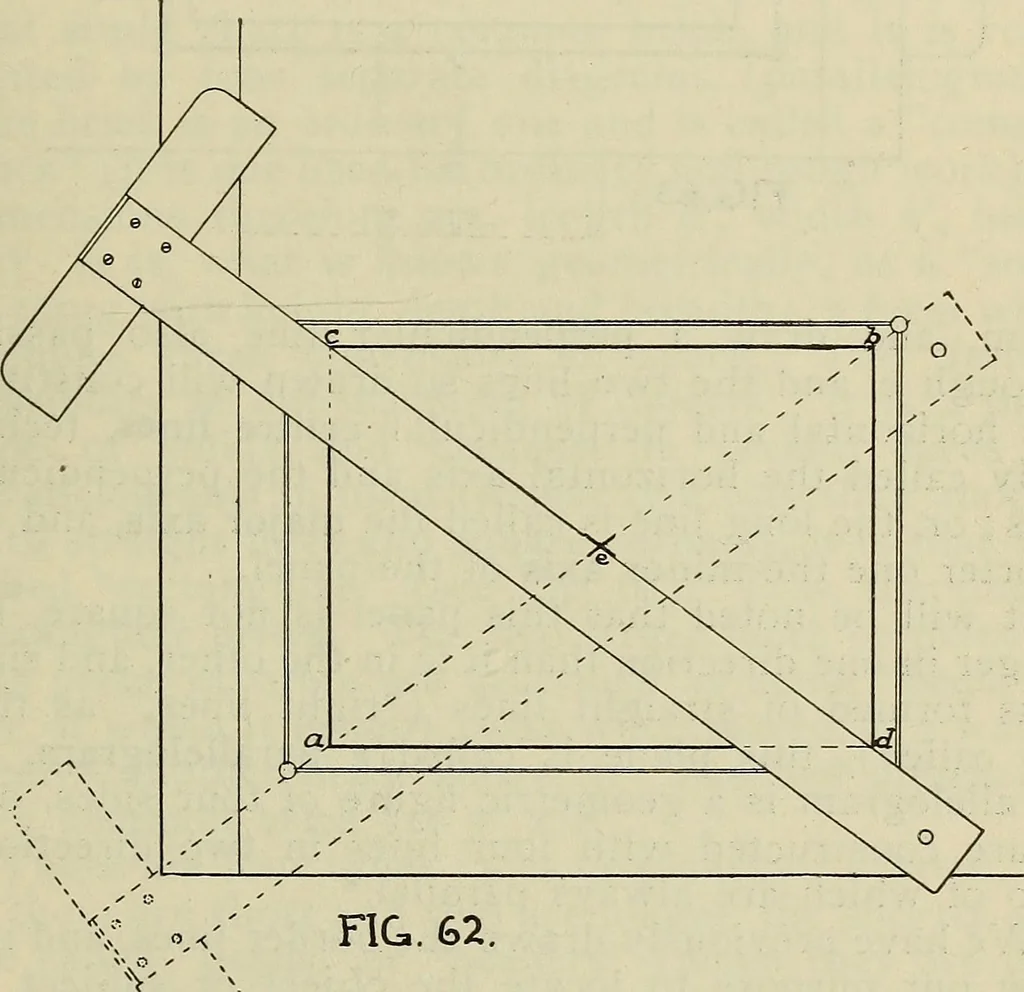

left and upperright (marked a, b, Fig. 62), and draw a short straightline as near the centre of panel as can be approximatedby eye measurement. Shift the edge of T-square bladeto points c, d, and draw a second short line crossingthe first. The intersection of these two short lines will indicatethe… … \y ARCHITECTURAL DRAWING *■ FIG.. 63. b.-_-=J. gram, and draw a perpendicular line also passing-through e, and the two lines so drawn will constitutethe horizontal and perpendicular centre lines, techni-cally called the horizontal axis and the perpendicularaxis; or, the long line is called the…
