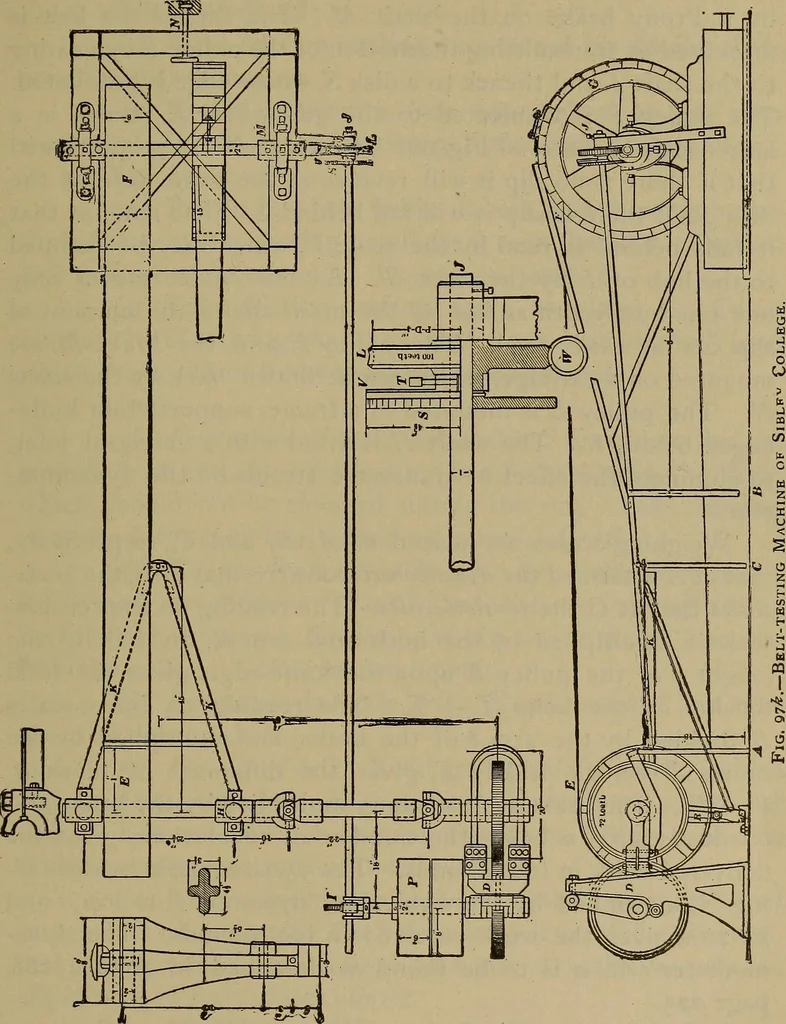

describedin Vol. VIL of Transactions of American Society of MechanicalEngineers. The belt to be tested is placed on the pulleys E, F; power istransmitted through the pulleys P to the Lewis transmitting- * The student is referred to papers in Transactions of American Society ofMechanical Engineers,… … 22,S EXPERIMEN^TAL ENGINEERING. [§ 198. dynamometer (see Article 188, page 224), and thence throughthe shaft 77to the pulley^. The power transmitted is absorbedby a Prony brake on the shaft M. The slip of the belt ismeasured by transmitting the motion of the pulley E by gearingto the shaft 7, and…
