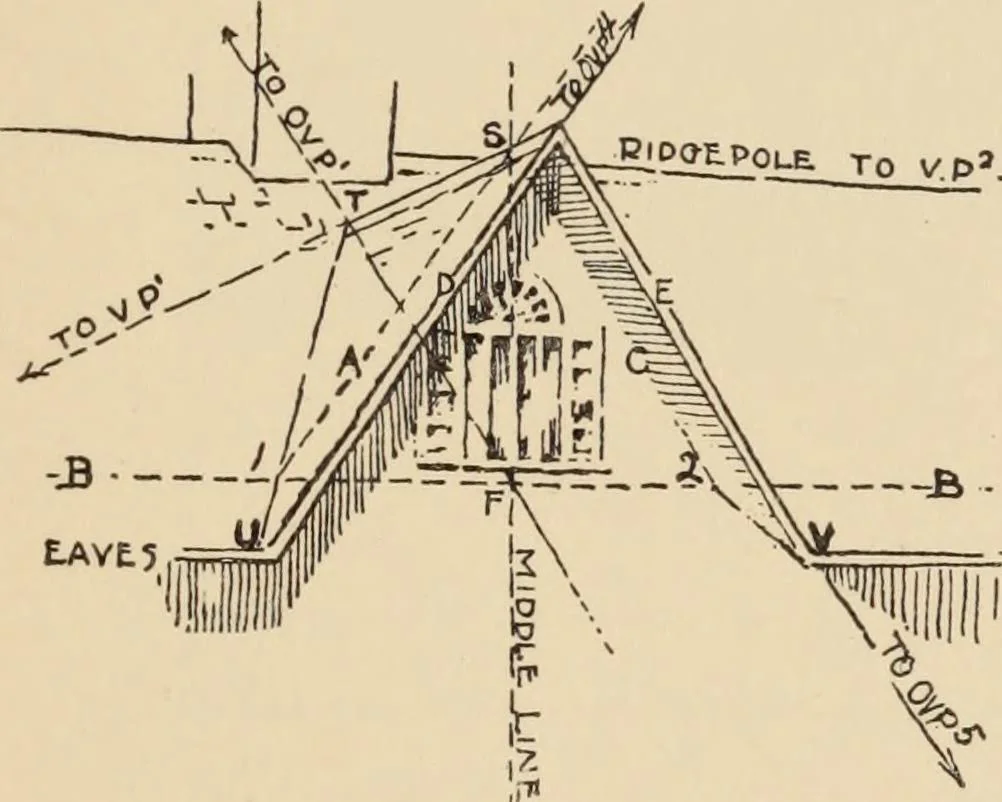

continued upward, markthe height of the dormer from lineB. (In this case it is not so highas the main house.) Through thispoint (S) the dormer ridgepole isdrawn to VPl, and cut by theoblique middle line on the roof (in point T). The width (1-2)of .the dormer is then marked perspectively to right… … Fig. 127 FREEHAND PERSPECTIVE U and V). From these points the edges of the dormer roof pro-jection run parallel respectively to A and C. Oblique Lines in the Dormer. — These two lines A and C,though oblique to line B, are in the same vertical plane (as thegable lines F and H in the main house are…
