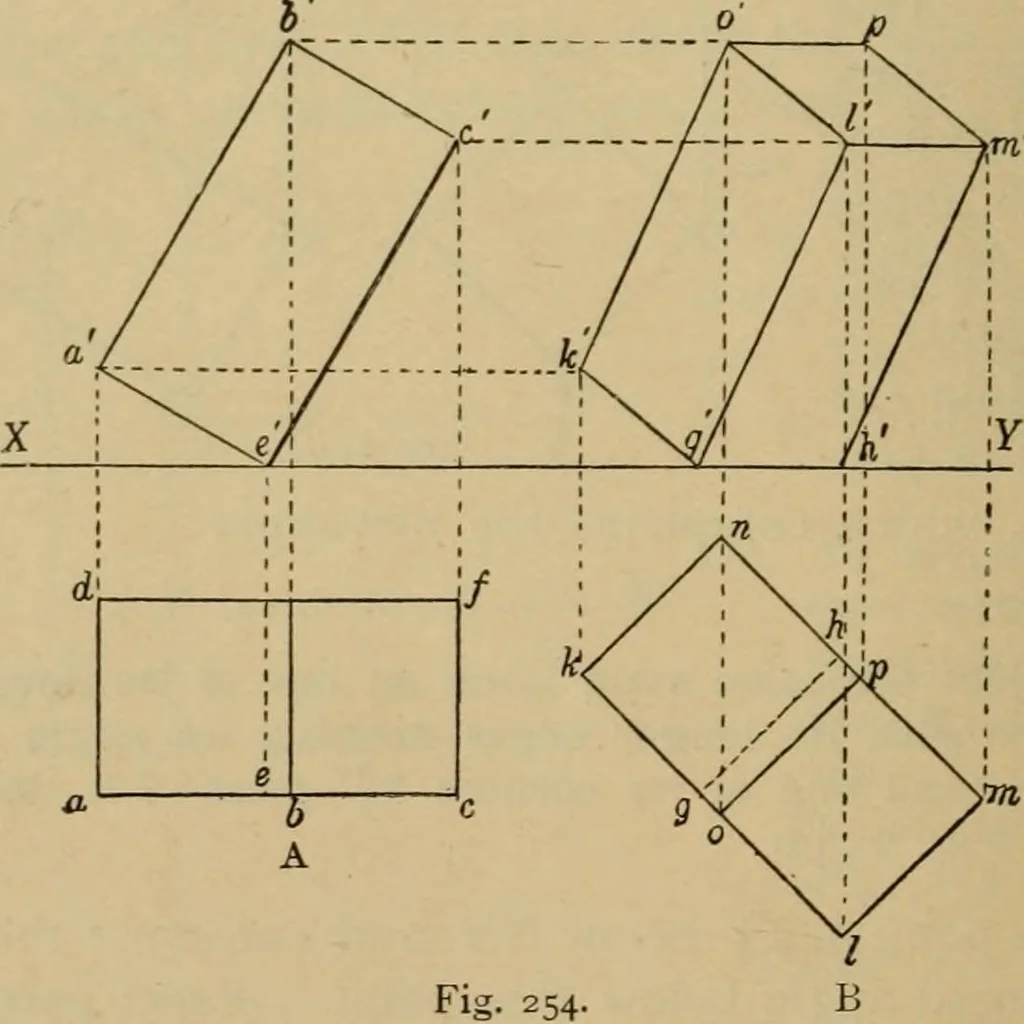

be 10 high, with one edge of the base making an angle of 60° with the V.P., and its nearest point 2 from it.D to have a base 8 x 5, to be 5 high, with both sides of its base making an angle of 45° with the v.?., and the nearest point 2 from it. 179. To project a quadrilateral prism 7ix3|x3|,… … Draw XY. At point e draw the elevation eahc at therequired angle. 2J below XY draw the line df parallel to it. SIMPLE SOLIDS. m Let fall lines from a, b, and c\ at right angles to XY, andmake da and /c each 3| long. Join ac^ which completes theplan. The student should now project the four solids…
