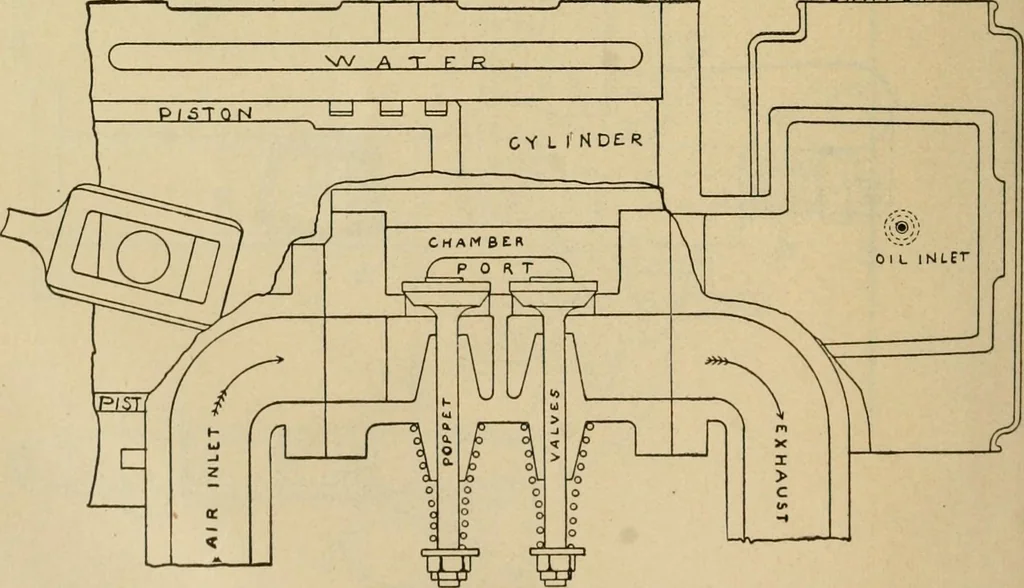

the vapor-izer through the overflow outlet back to the tank. During the pistons first orsuction stroke the pump injects the oil (opening the horizontal valve ) throughthe spray nipples (see oil jet, fig. 29) into the vaporizer; but if the by-pass valveis partially or wholly depressed at this time,… … 30. Exhaust=Chamber Side of Engine. THE HORNSBY-AKROYD OIL ENGINE. 35 of springs tliey are actuated by levers moved by cams on the auxiliary shaft.Through the port (marked in the figure) leading from the exhaust chamber to therear interior of the cylinder, the air passes onits way in and the…
