A hand book of general instruction for mechanics, containing useful rules and memoranda for practical men (1907)
Smith, Franklin Elijah, 1872- · New York, D. Van Nostrand company · leaf 244

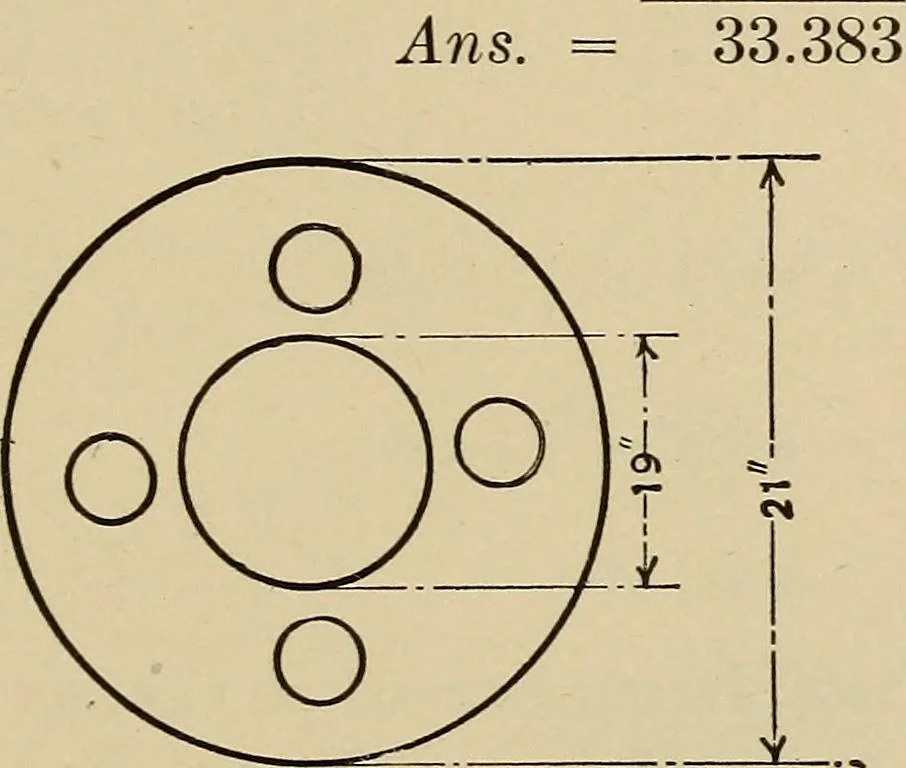

Fig. 50 36.5 X 48.5 X .7854 36 X 48 X .7854 Arts. 1390.3541356.971 … Fig. 51 Example. If the outer diameter of a metal ring is21 inches and the inner diameter is 19 inches, and thering has 4 quarter-inch holes in it, what is the area otthe metal? (Fig. 51.) 232 A HAND BOOK FOR MECHANICS First find the area enclosed by the outer diameter,which is 346.3614 square…
