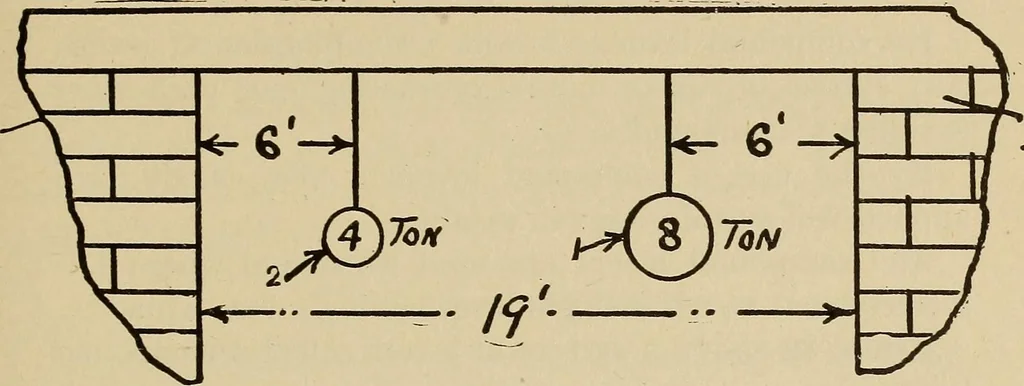

ever the shorterarm (in this case the distance from the fulcrum to weight)bears the greater weight, it is very clearly seen that theshare of the whole weight supported at A must be 2f tons,because 4 — 1J ■= 2f. Example. A beam 19 feet long and weighing 700pounds is resting on two supports A and B,… … Fig. 81 First find the share each support bears of weight 1. weight of weight 1, supported 6X8 48 _ = — = 2.63 tons 19 19 at A. Then as A supports 2.63 tons of the weight 1, B mustsupport 5.37 tons of the weight 1. In the same manner find the share each support bearsof weight 2. 6X4 24 = — =. 1.27…
