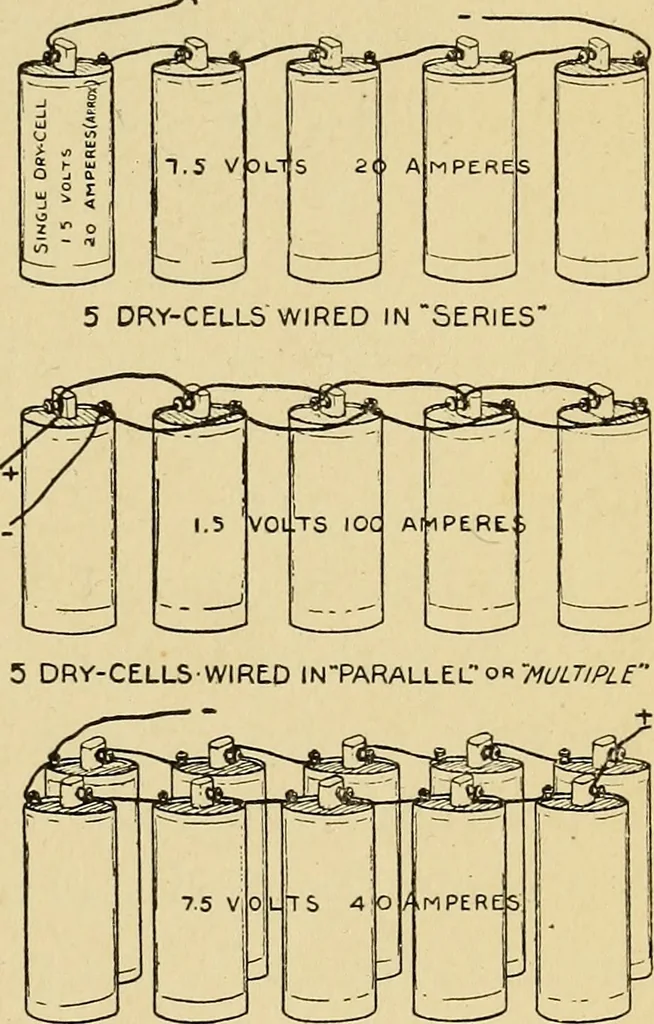

f I ohm. Connection of Dry Batteries.Batteries, or, more properlyspeaking, dry cells, may beconnected in series, parallel(also known as mtiltiple), or acombination of both ways,called series-parallel. Theseconnections are describedunder Dry Batteries on page 247, and shown in Fig.333. Now for an… … 10 DRV-CE-LLS WIRtD IN SERIES-PARALLEL Fig. 333. — The Three Methodsof Wiring Battery Cells. (Showing 5 cells and the voltage andapproximate amperage obtained byeach method.) 254 HANDICRAFT FOR HANDY BOYS (if the cells are alike and uniform); while, if the cellsare all connected in parallel, the…
