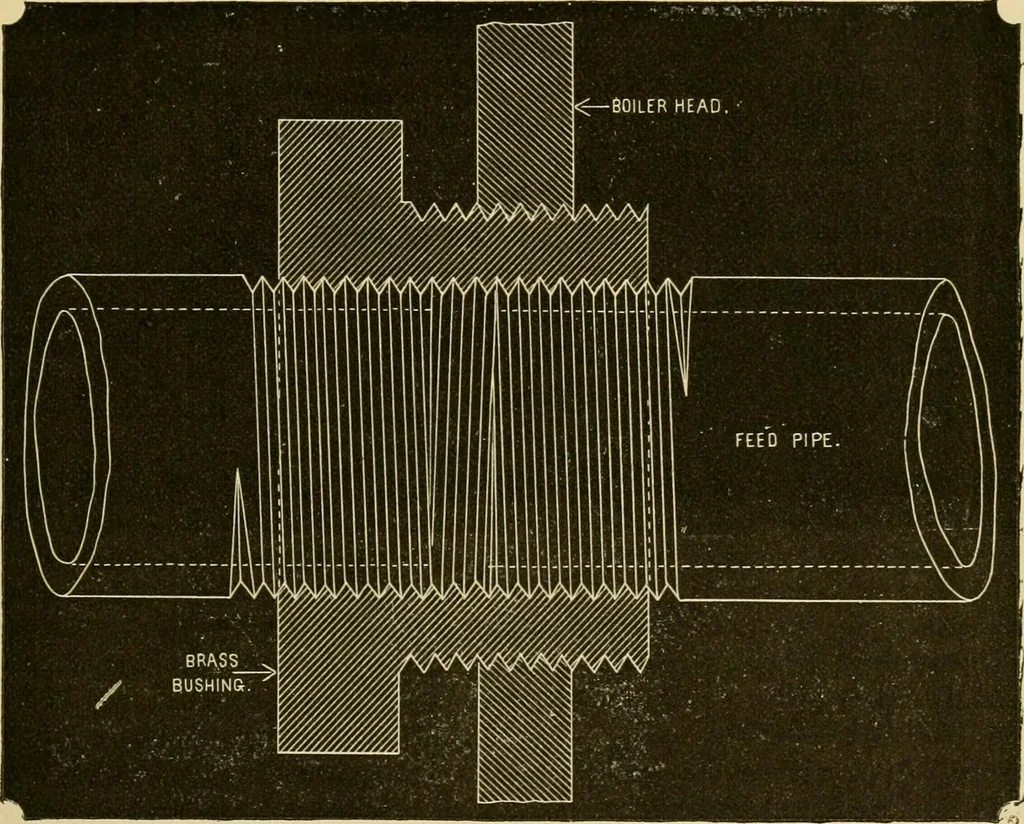

irs without disturbing any of the others. In the cut, two boilers onlyare shown. In a battery of two boilers, the tee sliown at B would have a plug screwedinto its end and the pipe would stop there; for more than two boilers, the pipe wouldbe continued past this boiler as shown in the cut at A, and… … Fig. 4. Fig. 4 shows the method of making the connection through the front tube sheet. Abrass bushing is screwed tightly into the tube sheet. This bushing is drilled and tappedto receive the ends of the feed-pipe, which are lirmly screwed up to make a good jointwithout their ends meeting. This…
