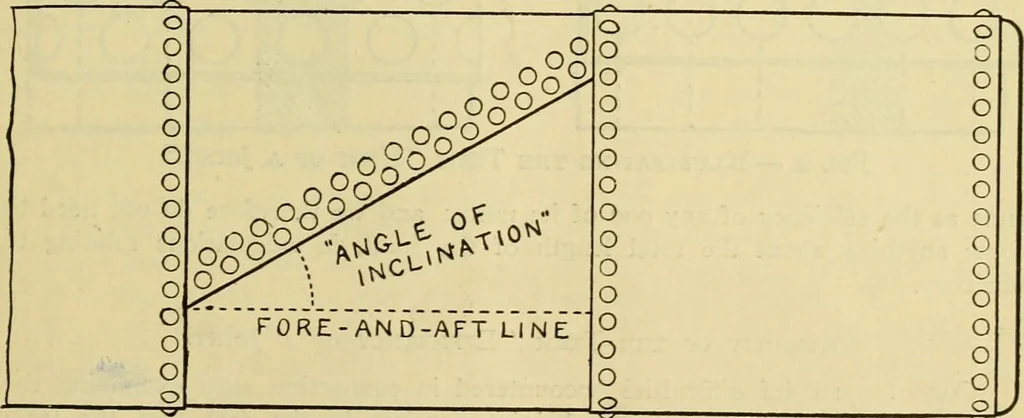

nt of misunderstanding stillexists with respect to the diagonal joint. We have therefore prepared thepresent still more extensive article, which it is hoped will be found satisfactorilycomplete, and as simple as is consistent with the inherent complexity of thesubject. In boilers of certain types,… … Fig. 1. — Illustrating the Diagonal Riveted Joint. possible) fracture runs parallel to the length of the shell or drum, or cir-cularly around it, there appears to be no misunderstanding as to the methodto be followed in investigating the effect of such perforations upon the pressureto be allowed…
