Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 283

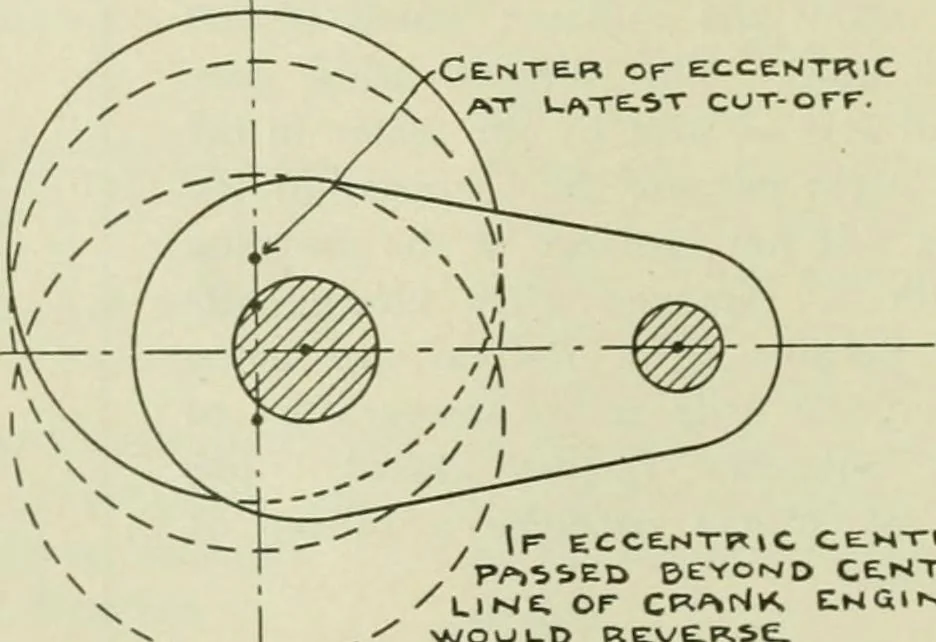

k pin, (Fig. i,) and if we consider the position of the ec-centric with reference to this imaginary line, seen from the end of the engineshaft, then any mechanism which will permit the eccentric to move relative to theshaft so that the center of the eccentric sheave moves along a line… … -4- . If eccentric center PftiSED BCYOiMD CENTER/LIME. OF CF^NK. EH51NEWOULD REVERSe. ?ERPEf(l5lCULAR,TMHOUIiH CENTEK.OFeccentric /st |i./vre.&T CuT-orr, OK CRAHtl, C6WTER, WHE Fig. i. Relation of Crank and Eccentric at Different Cut-offs. 1916.] THE LOCOMOTIVE. 7 Moreover, it can be shown that…
Locomotives · Steam-boiler explosions
Internet Archive · Carnegie Library of Pittsburgh · Public Domain Mark 1.0. Free to use for anything.
