Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 90

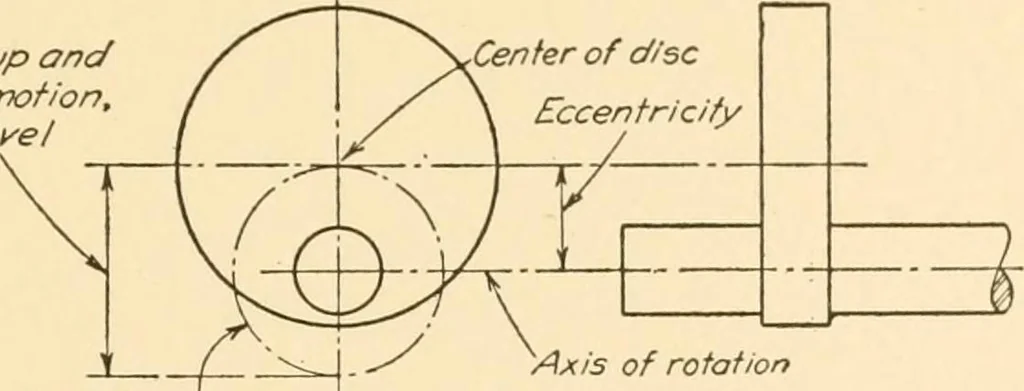

Connecting Rod End. 117. An eccentric is a circular disc which rotates about an axis whichdoes not pass through its center, Fig. 147. An eccentric as made for MACHINE DETAILS 79 Total up anddot^n mofion.or Travel … Axis of rotation^Path of center of disc Fig. 147. Eccentric. use on a steam engine to move the steam valve is shown in Fig. 148. Itconsists of the eccentric, eccentric straps and bolts. The eccentric is h± Eccentric Rod^^^\^^,
