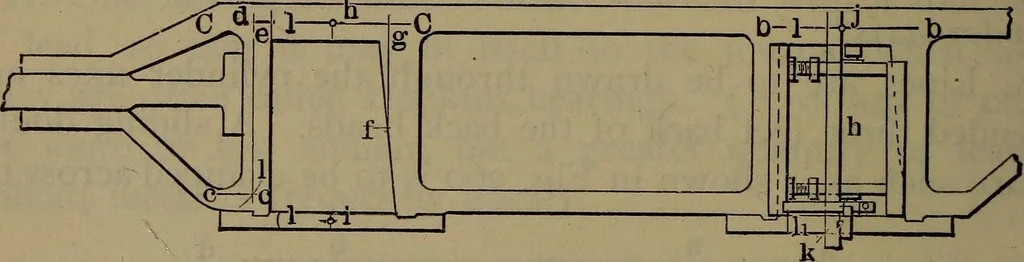

addle casting. The center is marked with apunch; we will call it a. On the outside of the frame, lines b b c c are to be drawnparallel with its upper edge, and all at equal distances there-from; on the front jaw of each front pedestal c c is to bedrawn parallel with b b, the same distance therefrom… … Fig. 262. Locomotive Frame. cylinder axes. With a T-square a line is to be drawn throughx at right angles to each frame top, and the crossing d of thisline with C C prick-punched. A line d d will be parallel to x x,hence at right angles to the cylinder axes. To get the point h, through which a line…
