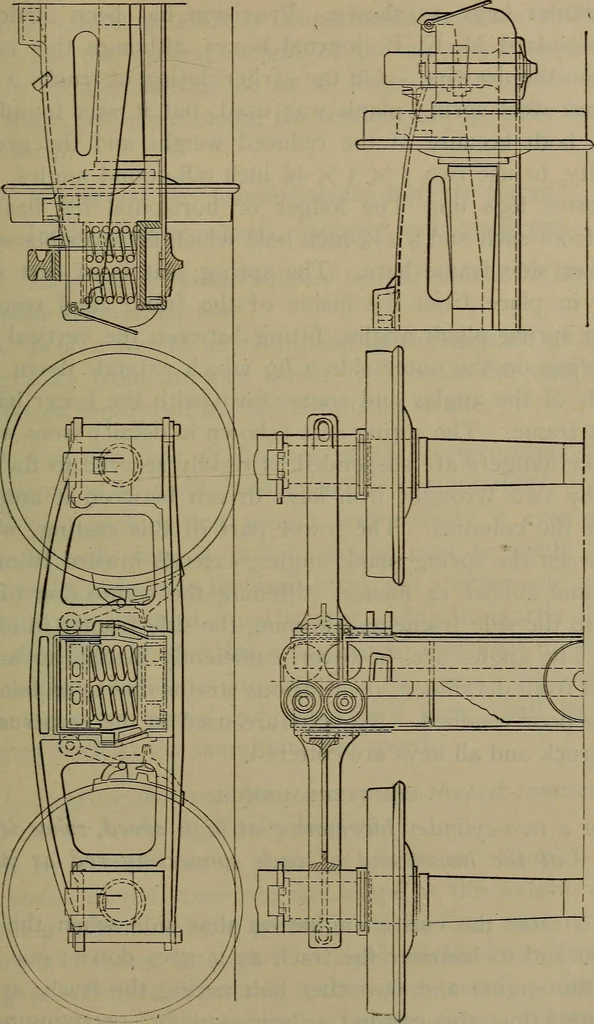

wise movement. The yokemay be connected by springs with the frame or equalized withthe driving springs. A radius bar pivoted to a cross piece onthe frame gives the required curved motion. On a curve thecradle links raise the suspension point, insuring centrality ona straight track. Q. Describe the… … be ft 412 LOCOMOTIVE CATECHISM. zontal, and the boxes are retained by heavy wrought iron,semi-circular keys, as shown. Provision has been made forusing standard M. C. B. journal boxes, although this is notshown on the drawing. On the earlier design of trucks a one-piece cast-steel spring plank was…
