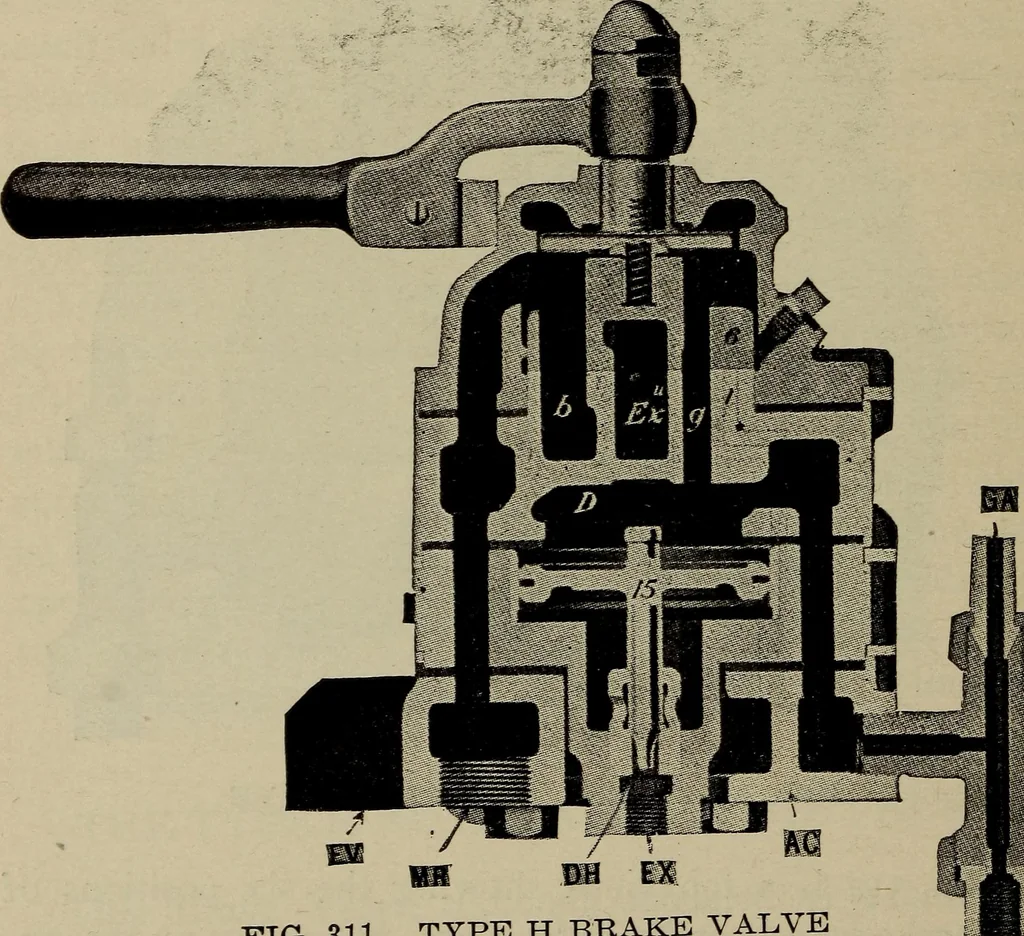

ROTARY-VALVE SEAT. … FIG. 311. TYPE H BRAKE VALVECONNECTIONS: FV—Feed-Valve Pipe; MR—Main-Reservoir Pipe; GO—To Gov-ernor- DH—Double Heading Pipe; EX—Exhaust; AC—Appli-cation-Chamber Pipe; BP-Brake Pipe; GA-Duplex AirGauge; ER—Equalizing- Reservoir ET BRAKE EQUIPMENT 699 Fig. 313 shows two views of this valve similar…
