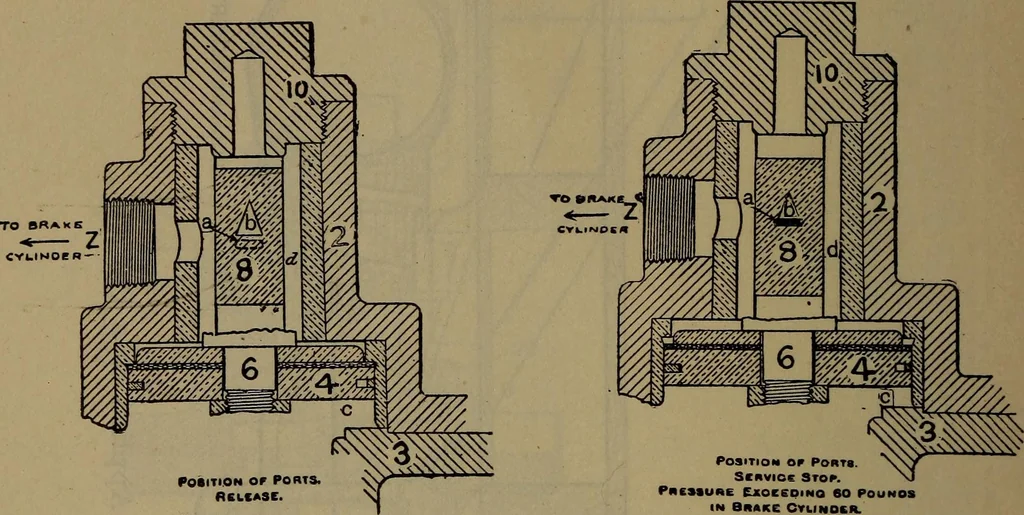

o o > be .3*o P4 3c ■*-> <! bo 450 LOCOMOTIVE CATECHISM. exceeds 60 pounds piston 4 is moved down until ports b and aregister (Fig. 302) when surplus brake-cylinder pressure is … Positiok or Ports.Scnvice Stop. PRESSURE EJCOCEDlNQ 60 POUNOSIN BRAKE CVUNOCR. Fig. 301. Release. Fig. 302. Service. discharged; spring 11 then restores the conditions of Fig. 301retaining 60 pounds in the brake cylinder. In an emergency application (Fig. 303) the violent admissionof air into brake…
