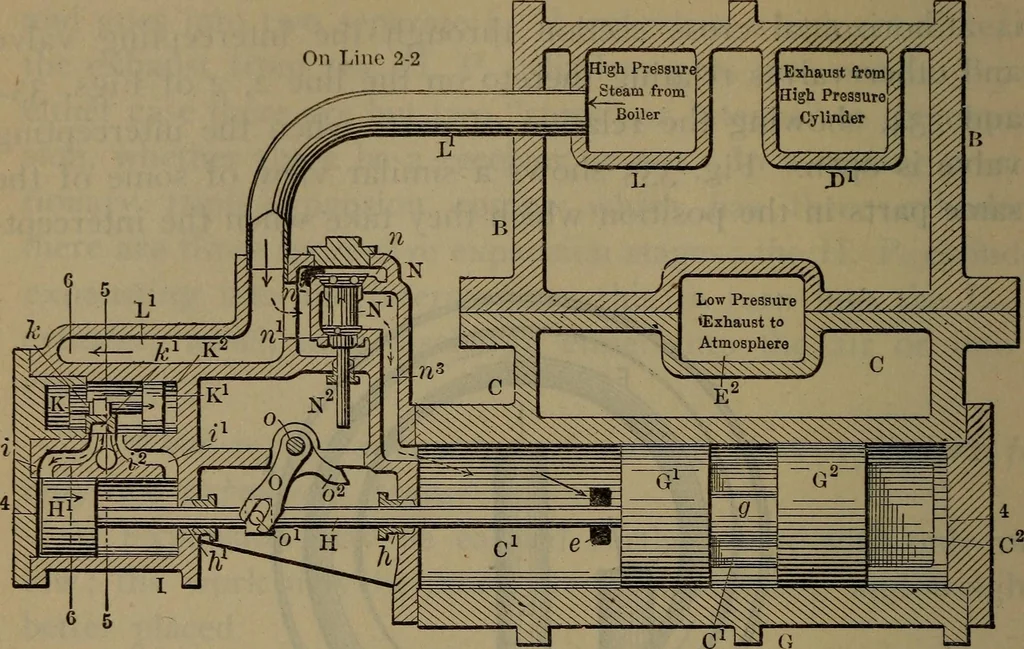

^32. Front Elevation (partly in Vertical Cross SectionSchenectady Compound-ing valve is closed. Fig. 334 shows a vertical lengthwise sec-tion through the intercepting valve on the line 4, 4 of Fig.335, with the valve open; this figure being also a section onthe line 3, 3 of Fig. 332. Fig. 336 is a… … Fig. 333- Schenectady Intercepting Valve in Compound Position. through the regulating and intercepting valve-working divi-sion on the line 5, 5 of Figs. 333 and 334. Fig. 337 is asimilar section on the line 6, 6 of the same figures. Fig. 338is a vertical lengthwise section through the regulating…
