Hill, John A. (John Alexander), 1858-1916, Sinclair, Angus, 1841-1919 · New York : American Machinist Pub. Co · leaf 56

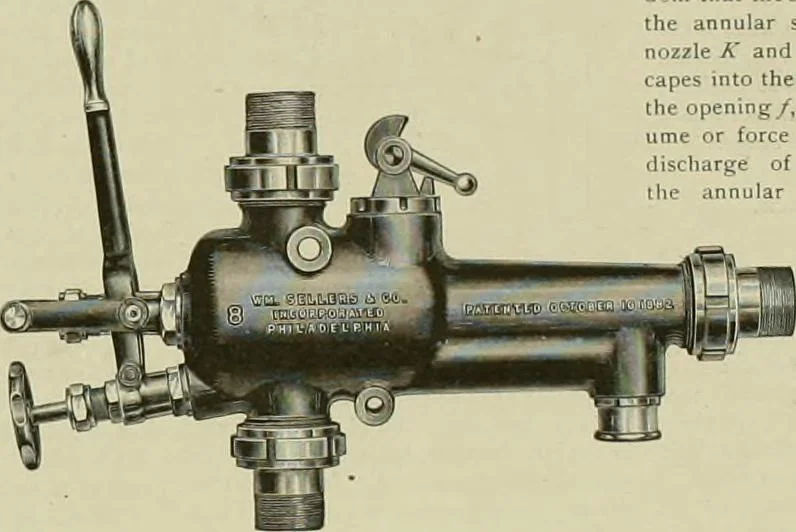

s from the instru-ment partly through theoverflow opening f andpartly through the overflow openings pro-vided in the combining tube g g throughthe overflow chamber /and passage E E,and produces a strong vacuum in the waterchamber /, which lifts the water from thesource of supply, and the united jet… … /■ is out of the forcing nozzle A, allowingthe steam to pass through the forcing noz-zle A and come in contact with the annu-lar jet of water which is flowing into thecombining tube around the nozzle K.
Railroads · Locomotives
