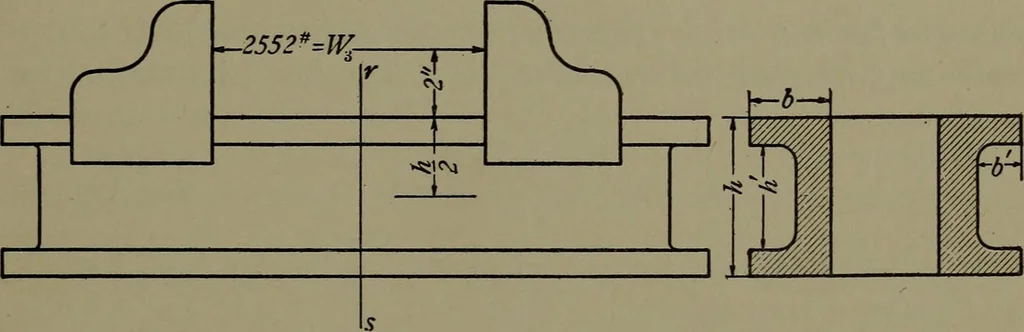

nt about equal to that for tension. In any form offastening it is well to investigate both tension and shear andtake the larger requirement. It should be understood that, if the block clamps over theedges of the frame on planed ways, this will assist the bolt inholding the block down and a smaller… … Fig. 121. of the same general shape and cross-section as Fig. 121. Assumealso the force W^ acting at some point along the block face, sayat the middle of the block, a distance of 2 in. above the top ofthe frame. Any other height may be taken but in all probabilityif the dies should not be parallel…
Machine design
