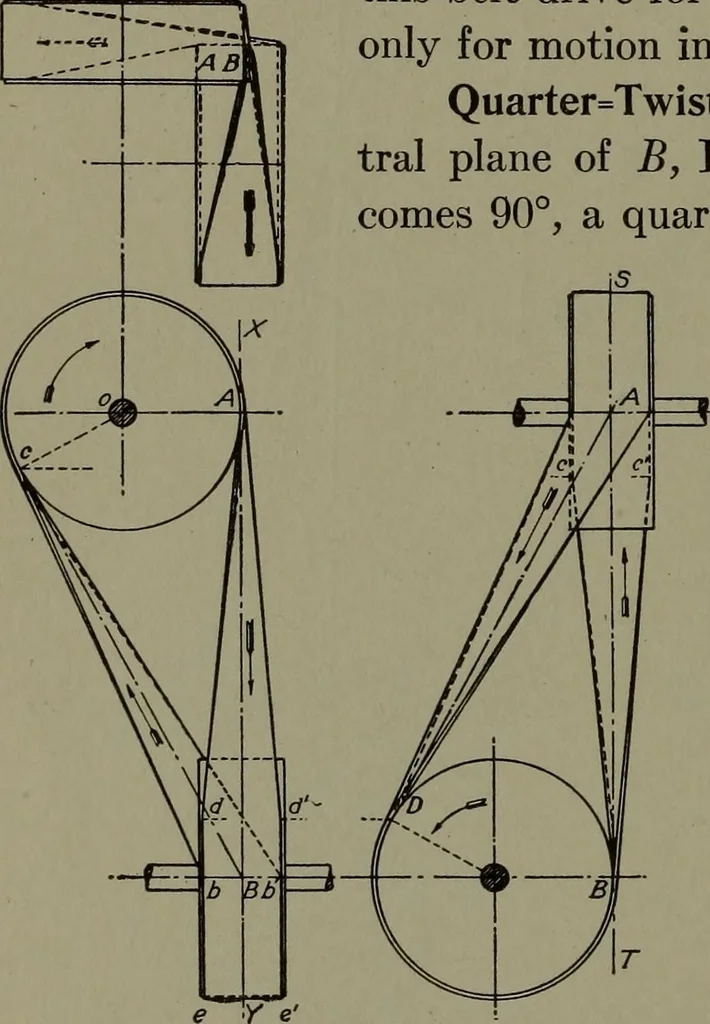

Fig. 97. Diagram of Pulley Drive where ShaftsAre not Parallel 114 MACHINE DRAWING … belt twists about this line, presenting a flat side to the face of pulleyB at R. From L2, where the belt leaves B, until it reaches i?2, the centerline of the belt is continually in the central plane of the receivingpulley A, and a similar twist in the belt takes place. If now weattempt to reverse…
