Machine drawing; a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator (1914)
Griffin, Charles Lewis, 1867-, Adams, Charles Clyde, 1882- joint author · Chicago, American technical society · leaf 130

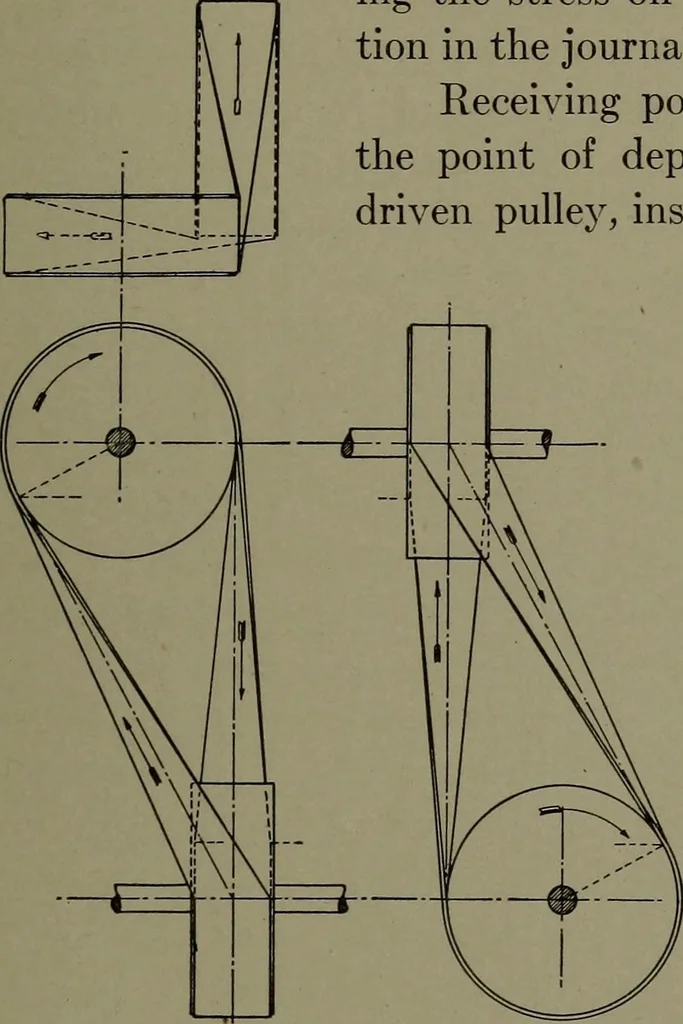

er, and its traces or intersections with the central planes ofR and P are shown in X Y and DH of the front view. The guide-pulleys are idlers introduced only to form a pathfor the belt, and do not in any way affect the velocity ratio. Theymay, therefore, be made of any convenient size to suit the… … 118 MACHINE DRAWING one face of N bisects the right-hand face of R at D. On the frontand side views, the location of the axes has been assumed as GG and FF, and the corresponding viewsof the pulleys are drawn accordingto the principles of projection. Examining the belt in passingfrom D to E, we…
Machinery
