Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 175

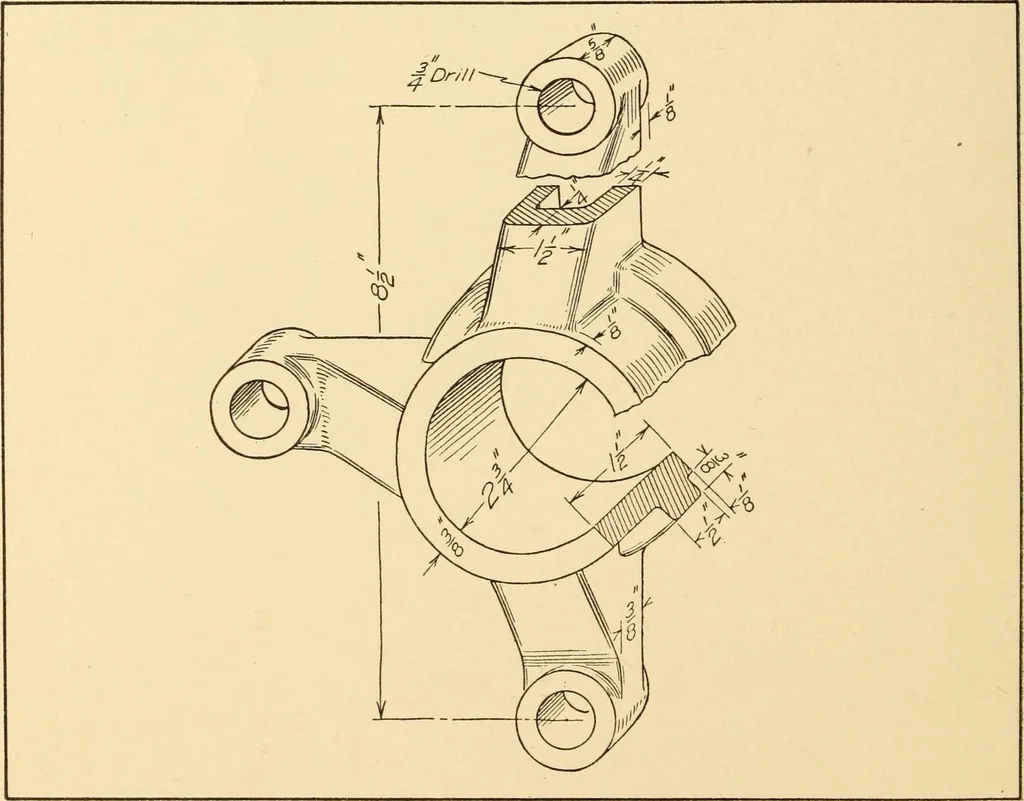

Three /ugs ecfually spaced Fig. 271. Probs. 65 and 65-A. … 164 Fig. 272. Prob. 66. PROBLEMS AND STUDIES 165 DIMENSIONING 194. The study of dimensioning will occur every time a working drawing is made-The rules and systems given in Chapter IV should be carefully studied, and their appli-cation observed. The location of finished surfaces and center hues must…
