Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 183

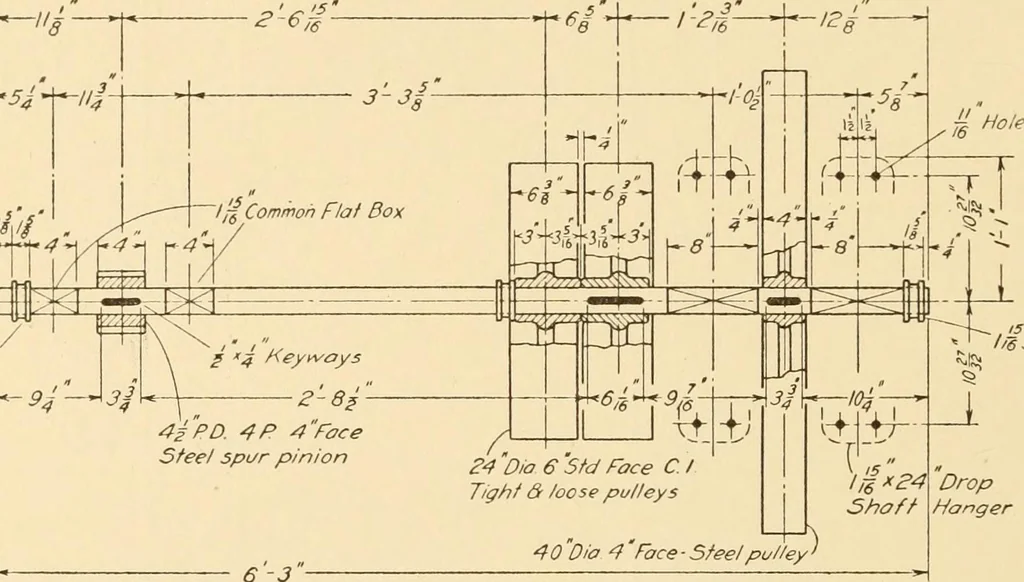

See text formissing dimensions. Fig. 287. Prob. 96. Special Pulley. 171 172 MACHINE DRAWING ii Holes Ii Solid Cvl/or … 1/6 Solid Collar 6-3 COUNTERSHAFT MO. I. IjIDia 6JLong. Four WontedScale-l^=ir\Apnl 19,1920. Fig. 288. Prob. 97. Shaft Drawing. PROB. 94, Fig. 170, Chap. VI.—Make a drawing of POST BOX for size speci-fied by instructor. PROB. 95, Fig. 286.—Make a working drawing of the cast iron PULLEY. Showright…
