Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 58

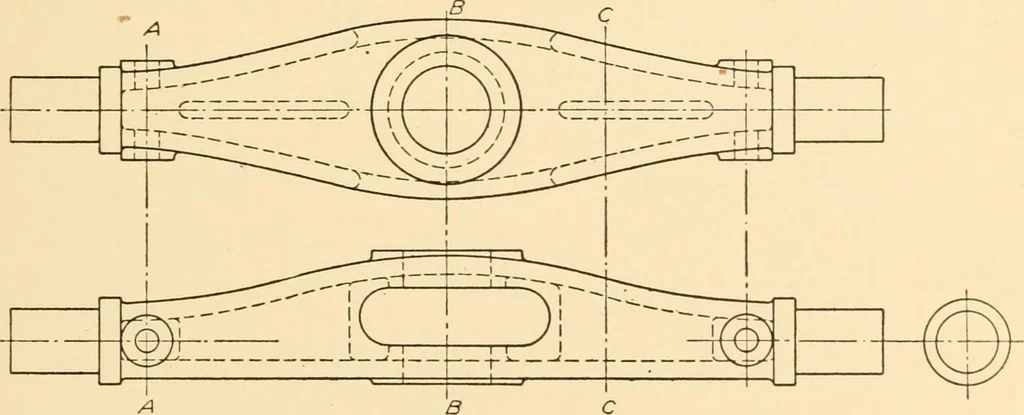

iJ nm Fig. S3. Complete Section. Fig. 84. Preferred Section. W^hen a sectional view is used in place of an exterior view, all of thefull lines beyond the plane of the section are generally drawn. In cases … m Section A-A F^
Machinery
