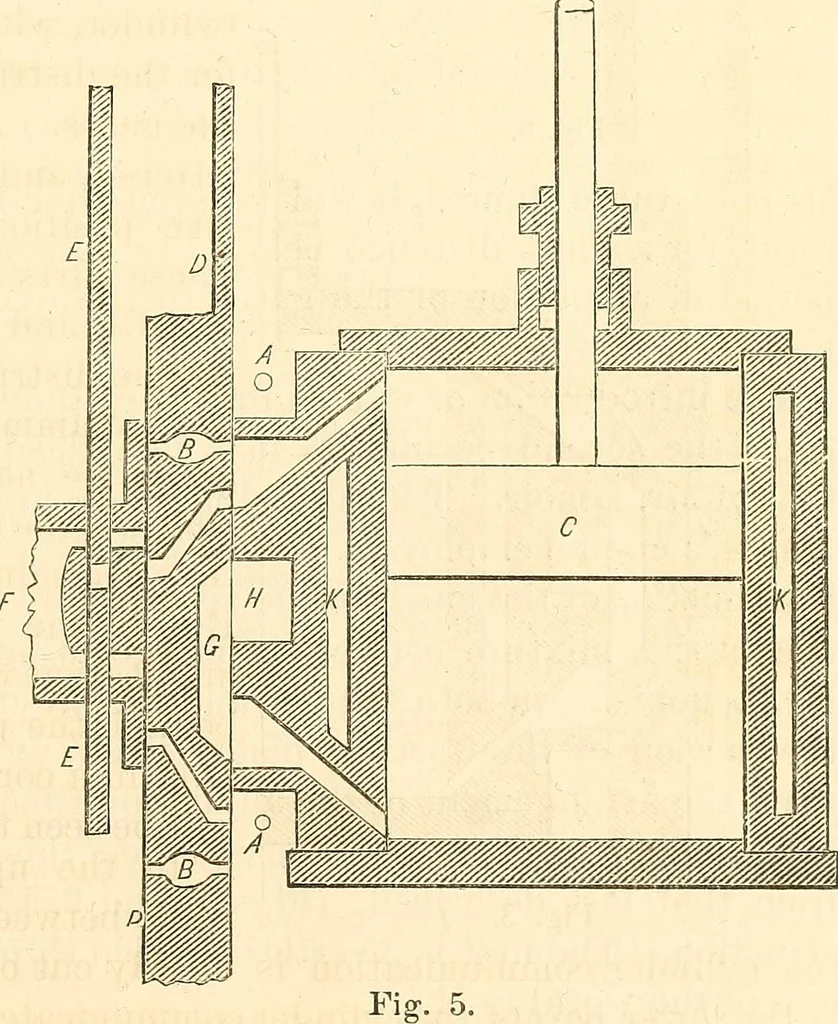

jet Bis represented just oppo-site to A, and in this posi-tion it is lighted by com-munication through thefree opening on that side.In Fig. 4 the lower jet isin position to be lighted byanother permanent light,marked A also. When the piston reachesthe end of its course theslide D is drawn upwardso… … 68 PAEIS UNIVERSAL EXPOSITION. The space K, which is shown in all these figures, is the interval betweenthe cylinder and its jacket, in which cold water is kept constantly circu-lating. This is a provision necessary in every gas engine to preventexcessive elevation of temperature. Another expedient…
