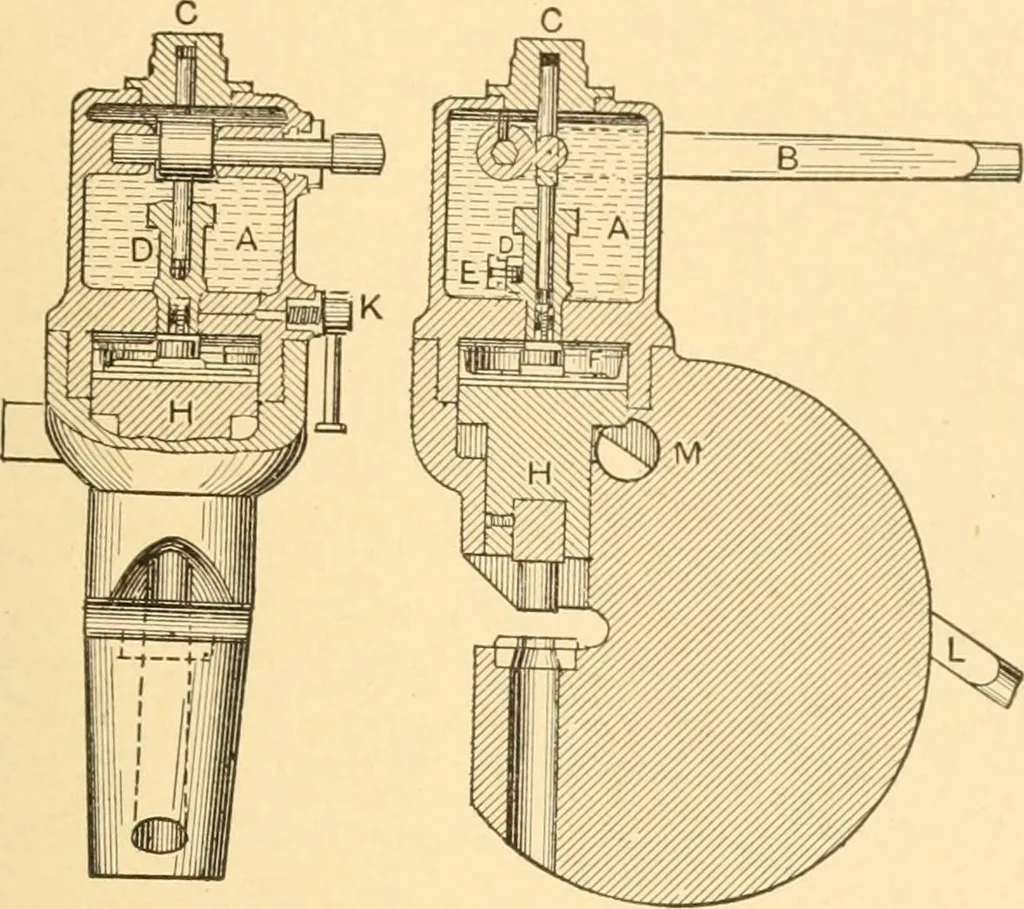

out the tin contained in the cen-tral cylinder H, and the latter the lead in theannular cylinder G I. J is the mandrel. • Themachine admits of being arranged for makingpipes all of one metal, as in the lower figure, 318. There are several modifications of these lead-pipe machines in use. One on… … 319. HYDRAULICPUNCH. A small plungerin the cylinder D, with in-let valve E and dischargevalve below, is operated bythe lever B, to give greatpressure to the ram H, towhich is attached the punch.On opening the by-passvalve K, the ram is liftedby the lever L and revolv-ing wedge M, pushing theoil…
