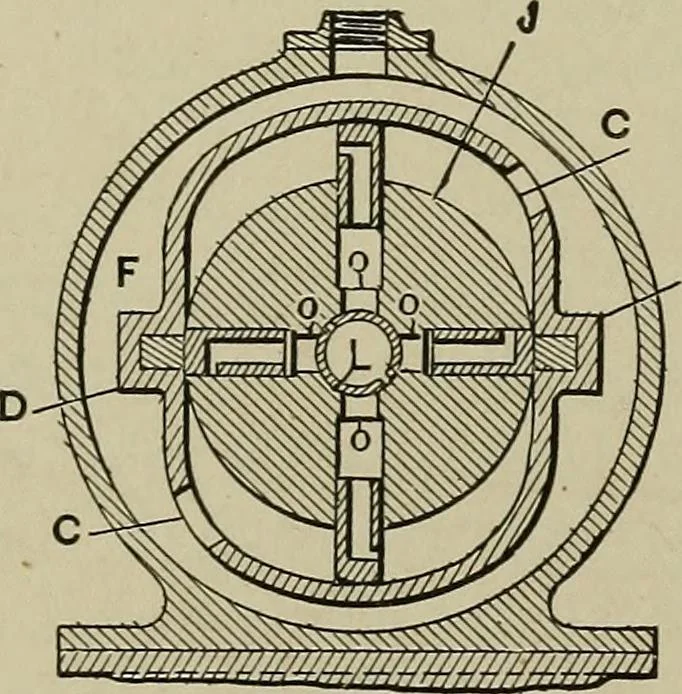

WASTE GASES. Coldair is blown through theannular chamber, betweenthe boiler and the chimney,by a fan, heated and dis-tributed for heating rooms.Additional draught maybe given to a chimney by ahigh-pressure blower andjet nozzle in the uptake. … 248. ROTARY ENGINE. Takessteam through the shaft L. The abutmentpistons, 0, <?, o, o, are pushed outward byd the steam pressure and have ports that areopened after passing the closure blocksD, D. The steam ports are closed by push-ing in of the abutment pistons at the ex-haust ports C, C. E,…
