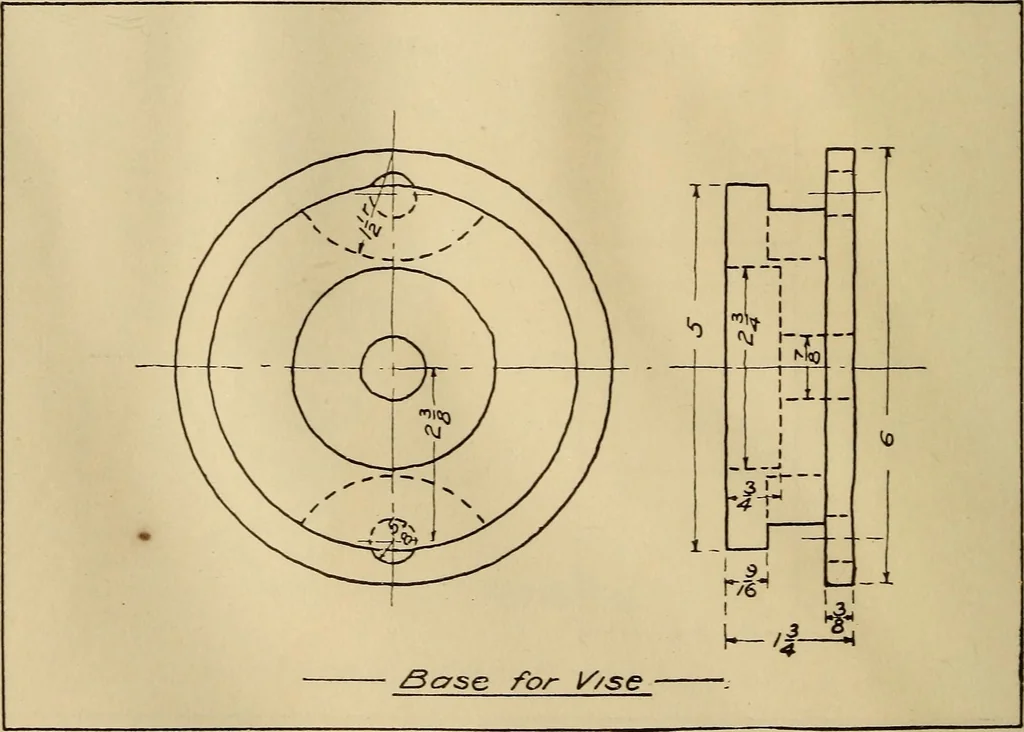

^ecrr/r?o. … Plate 10 EXTRA PLATE Copy the two views shown in one of the rectangleson pages 108 and 109, and work out the third view.The problem will occupy the entire sheet. Locatethe center lines to bring the drawing in the centerof the rectangle. Print the name of the piece belowthe drawing, making the…
