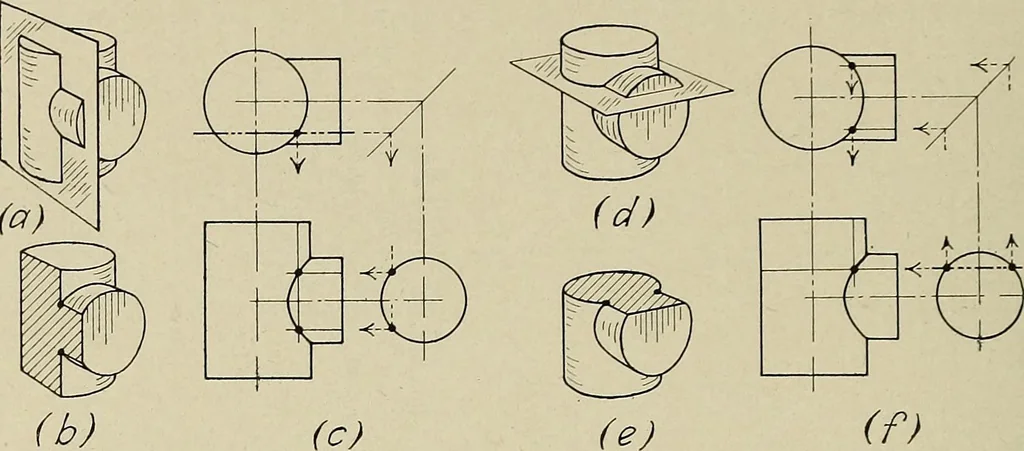

ines intersect in apoint which is common to the surfaces of both prisms and hence a pointon the required line of intersection. The solution is shown pictoriallyin (a) and (b). Two methods of finding the line of intersection of the surfaces of two 46 cylinders are similarly illustrated in Fig. 63,… … Fig. 63.—Two methods of finding points on the line of intersection of two cylinders.
